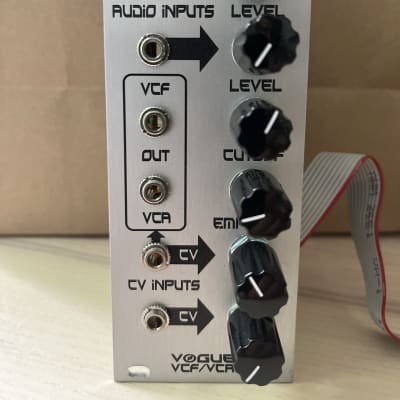

Moog Rogue VCF/VCA clone

Vogue has two outputs, VCA and VCF, so the module can be used as a VCF and VCA combined, or you can bypass the built-in VCA altogether and use the module as a stand-alone VCF. The VCA CV input is shared with VCF CV input #1, although it is not affected by the attenuator – so you can feed an ADSR into this CV input, attenuate it for the VCF, but still have the VCA kicking out at full gain. I thought this was a cool way to add the extra functionality of the Rogue’s quirky VCA without needing any extra panel space!

I included the VCA because:
- it’s such a small circuit.
- it’s simplicity, and it’s quirky response is part of the sound.
- srsly never

I didn’t make it ‘fully accessible’ with it’s own sockets and knobs because:
- I thought it would be neat to have ‘instant VCA without much patching’ when you need it.
- if you want to use a high end VCA, patch the VCF direct out to a high end VCA!

http://www.frequencycentral.co.uk/?page_id=888

  • 19 mA +12V
  • 18 mA -12V
  • 0 mA 5V
  • 55 mm deep
  • Ø 3.80 (10 Votes) Average Rating

Available as an assembled Module and as a DIY project.

No info about availability.

$223 submitted Feb 17th 2013, 17:58 by Frequency Central | last Change Apr 3rd 2016, 12:09 by Warpsmasher
