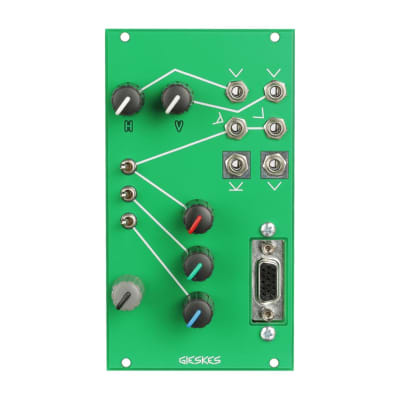

Oscillatoscope2e

VGA Video Generator

::ABOUT
It can convert CV and audio signals into video and audio.
It works by changing the frequency of oscillators that are synced to a VGA sync generator.
The signal that is generated is output as audio on a mini jack connector, and as video on the VGA connector.

::CONNECTION

inputs:
- cv in for R,G,B pitch (starve)
- high gain audio in for R,G,B pitch (starve)
- cv in for sync horizontal
- cv in for sync vertical
- power in +)- 7.5v DC 1A

outputs:
- audio out
- vertical sync out
- USB 5V power, max 500ma
- VGA out 640x480 60hz (actual resolution is that of the screen itself, because it is a analog signal)

::CONTROLS

pots:
- R,G,B pitch (starve)
- R pitch
- G pitch
- B pitch
- sync horizontal
- sync vertical

switches:
- R horizontal/vertical
- G horizontal/vertical
- B horizontal/vertical
