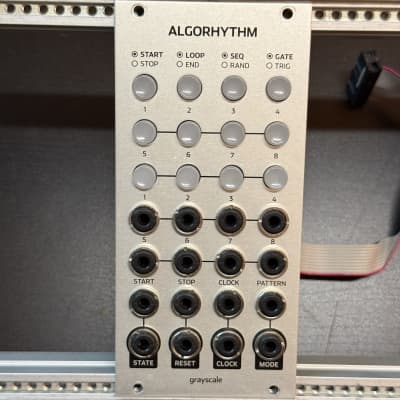

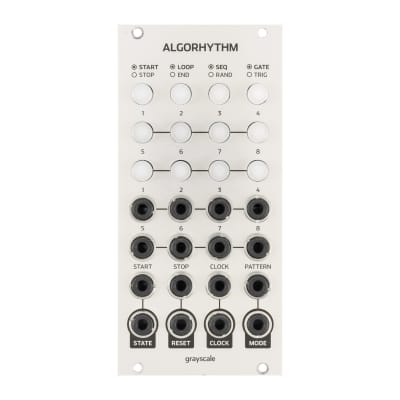

Pulse/gate/trigger sequencer

Algorhythm is a pulse/gate/trigger sequencer that provides 8 simultaneous channels. Channels can be chained together for up to 64 steps in total. Features include:

  • 12 pulse outputs, 4 pulse inputs
  • 8 steps per pattern (pattern can repeat up to 8x per channel for 64 steps)
  • Programmable loop length and pattern length
  • Arbitrary pattern length or polyrhythmic sequencing
  • Sequential and random modes with external CV control
  • Programmable gate/trig (per step and per pattern)
  • Patterns can be chained together in 4x16, 2x32, or 1x64 configurations
  • Global mute mode

All settings are automatically saved in memory and restored at startup.


  • 100 mA +12V
  • 0 mA -12V
  • 0 mA 5V
  • 42 mm deep
  • Ø 4.67 (6 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

$265 submitted Mar 2nd 2014, 06:54 by sempervirent | last Change Jun 9th, 01:59 by sempervirent
Specs are approved by the manufacturer
