OR/NOR Logic

Binary is a 1-bit analog computer that takes up to six inputs and determines whether the output should be high or low. It is intended to combine gates/triggers from Algorhythm modules, but works with most other CV and audio sources within a modular system. Each input includes an on/off switch that illuminates when a pulse is received. The output can be switched from OR to NOR logic for different applications.

Now available as a DIY kit:


  • 30 mA +12V
  • ? mA -12V
  • ? mA 5V
  • 28 mm Depth
  • Ø 5.00 (2 Votes) Average Rating

Available as an assembled module and as a DIY project.

This module is currently available.

$125 submitted Mar 2nd 2014, 06:56 by sempervirent | last Change Sep 29th 2016, 00:01 by sempervirent
Specs are approved by the manufacturer

Date Region Description Price Seller

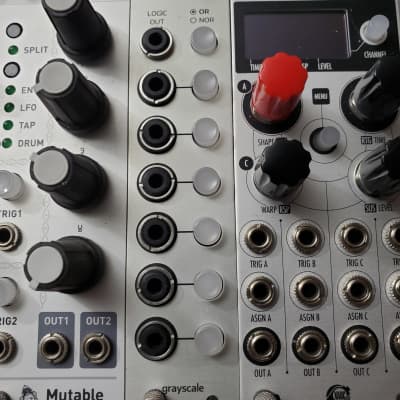

EUThe Grayscale Binary was built by me and is in good technical & cosmetic cond...€80,00LeChaim View
