x0x heart Eurorack Module

The heart of a TB303 synth recreated in modular format x0x xOx

From Open Music Labs, the x0x Heart PCB by itself is the heart of the infamous TB-303, surgically extracted to be transplanted into your designs. The x0x Heart is the analog section of the TB-303, replicated with SMT components, and made small enough to fit behind a Eurorack front panel.

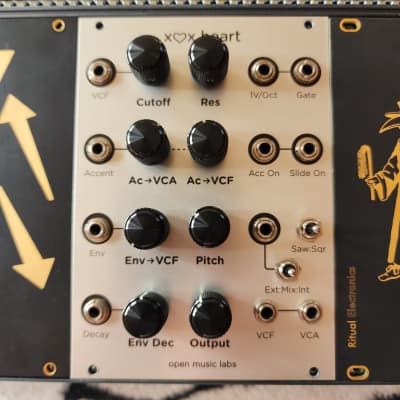

The Eurorack module pins out all of the knobs of the x0x Heart, and allows for CV control of frequency, gate, accent, slide, env-mod, decay, and cut-off. There are also switches for waveform select, external audio input, and outputs for both the VCA and VCF.

Assembled units can be preordered via the crowdfunding campaign on Crowd Supply, ending June 27, 2016:
https://www.crowdsupply.com/open-music-labs/x0x-heart-eurorack

Completely open-source and hackable: http://www.openmusiclabs.com/projects/x0x-heart/
Front panel designed by Grayscale: http://grayscale.info/

Alternate spelling: xOx heart

https://www.crowdsupply.com/open-music-labs/x0x-heart-eurorack

  • 10 mA +12V
  • 10 mA -12V
  • 50 mA 5V
  • 45 mm deep
  • Ø 4.00 (2 Votes) Average Rating

Available as an assembled Module and as a DIY project.

No info about availability.

$303 Price in € submitted Mar 1st 2016, 00:02 by sempervirent | last Change Jun 9th, 02:20 by sempervirent
Specs are approved by the manufacturer
