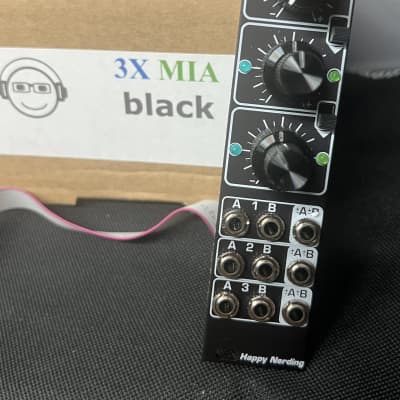

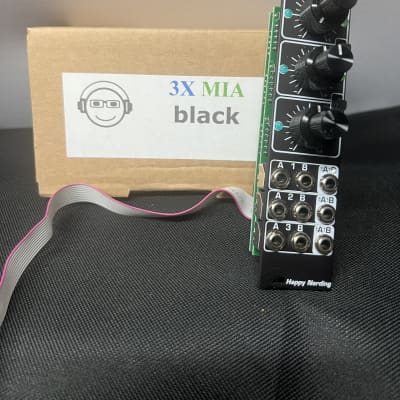

6-channel attenuverting mixer/offset/scale/polarizer

3 channels of 2-channel attenuverting mixers, using concentric pots. Each channel can be switched to mix with the subsequent channel, allowing for 2-2-2, 4-2, 6 mix configurations.

With nothing plugged into an input, an offset is normalled to that channel. The inner knobs control the A inputs, while the outer knobs control the B inputs.

DC coupled, so it can be used for audio, CV, or both at the same time.

  • 80 mA +12V
  • 80 mA -12V
  • ? mA 5V
  • 35 mm deep
  • Ø 4.75 (12 Votes) Average Rating

No info about availability.

$100 submitted May 23rd 2016, 07:35 by enj_music | last Change May 5th, 14:45 by igorrr
