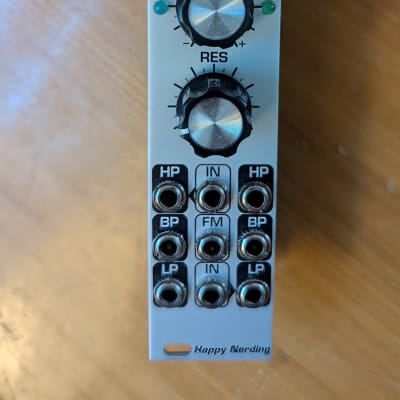

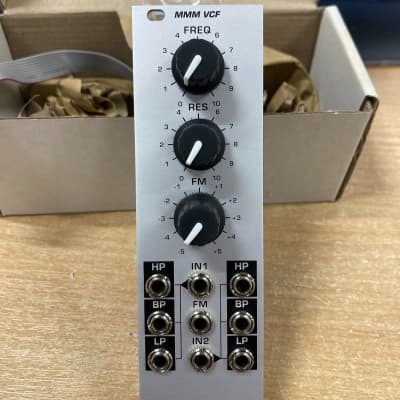

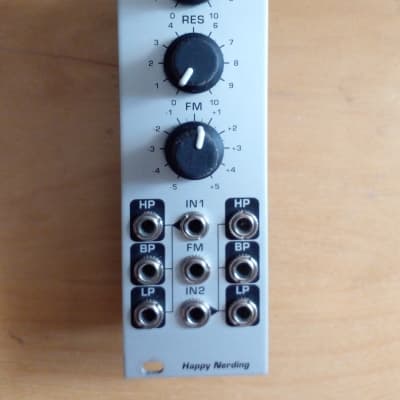

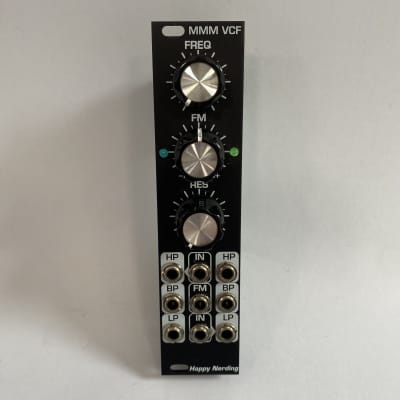

Dual multi-mode transistor ladder filter

A classic transistor ladder filter with added High Pass and Band Pass modes (12 dB/oct) in addition to the usual 24 dB/oct Low Pass mode. It is dual filter tuned for stereo operation like the FUN VCF so the FM input and FM Input attenuverter affect both halves of the filter equally.

  • 42 mA +12V
  • 40 mA -12V
  • 0 mA 5V
  • 42 mm deep
  • Ø 4.75 (8 Votes) Average Rating

This Module is currently available.

$200 Price in € submitted Oct 19th 2015, 21:57 by JohnLRice | last Change Mar 25th 2020, 04:09 by Tranquillitatis

17 Users are observing this
