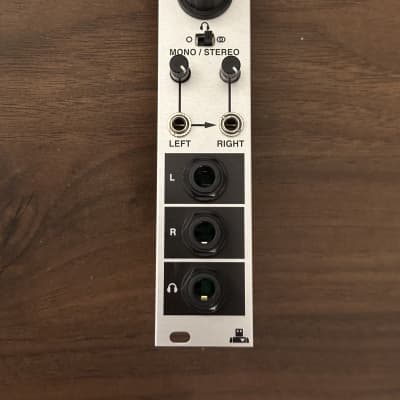

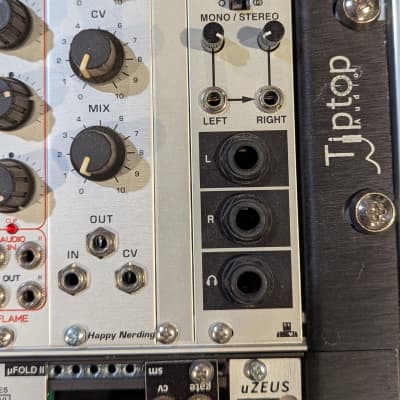

(uJack) Headphone amp and stereo 1/4" outs

Headphone & Stereo Line Output

A very handy module for directly monitoring your system with headphones and as a convenient line level output to connect to amplifiers or recording devices. The headphone amp is low noise and capable of driving low impedance studio headphones.

• Headphone amp capable of driving low impedance headphones via 1/4" stereo Neutrik jack
• L and R +4dBv unbalanced line level outputs on TRS 1/4" Neutrik jacks
• Switch for mono/stereo monitoring
• Left input normalled to Right input
• Individual level attenuators and global stereo headphone gain control
• 6pin header on back of module and ribbon cable for connecting directly to outputs of Azimuth II


  • 17 mA +12V
  • 17 mA -12V
  • 0 mA 5V
  • 24 mm deep
  • Ø 4.17 (52 Votes) Average Rating

This Module is discontinued.

$120 Price in € submitted Dec 15th 2012, 11:48 by intellijel | last Change Jul 9th 2019, 20:11 by intellijel
Specs are approved by the manufacturer
