Dimensions
14 HP
32 mm deep

Module is a 1U tile in Intellijel format

Current Draw
55 mA +12V
6 mA -12V
? mA 5V
Price
$179 Price in €

This Module is currently available.

Specs are approved by the manufacturer

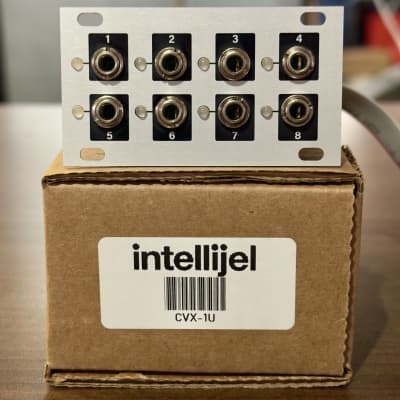

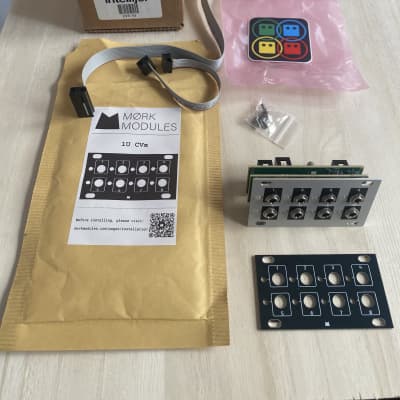

Eight channel CV expander module in 1U

The CVx 1U expander modules has eight user-configurable outputs and connects to the MIDI 1U module. Using the Intellijel Config app, you can assign each of the eight jacks to generate just about any type of voltage that can be derived from a MIDI signal; pitch, gates, triggers, clocks, velocity ... you name it.  You can chain up to four CVx modules to a single MIDI 1U to add a whopping 32 additional channels of midi control to your modular. This could allow you to create a 16 voice polyphonic controller plus more!

Each CVx module can also allow you to generate 2 , 2 or 4 voice polyphonic controls with selectable voice allocation modes.  The connectivity, feature set, expandability, and compact size make the MIDI 1U + CVx system ideal for integrating your modular gear with the rest of your rig.

MIDI 1U System

Intellijel’s MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system comprises two mandatory components, and one optional component:

MIDI 1U module - This 14HP 1U module receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset messages — sending the proportional voltages to individual 3.5mm jacks for patching.If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock & Reset functionality, but uses the other six jacks to transmit Pitch, Velocity and Gate messages derived from two separate MIDI channels.

MIDI input connector - the MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don’t own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect an external MIDI device.

CVx 1U module - This optional 14HP 1U module connects to the MIDI 1U module and adds an additional eight 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app, and greatly expand MIDI 1U’s ability to control your entire Eurorack system.
