Triangle Core VCO / LFO

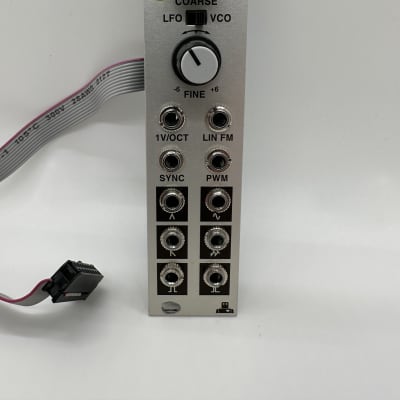

The Dixie ii has all the great qualities and features of the original Dixie but has been made a bit wider (6hp instead of 4hp) for better spacing and is now skiff friendly. The panel knobs are bolted on and the jacks have more space between them.

this makes a perfect modulation source to pair with the rubicon. add a ufold, uvca and ufade and you have all the ingredients for a powerful and highly flexible complex timbre generator.

-triangle core (superior for musical fm sounds)
-hi range (vco): 1hz to 24khz
-lo range (lfo): 0.01hz (100 seconds) to 240hz
-precise tracking within 0.1% over 8 octaves
-6 waveforms, including: triangle, sine, sawtooth, pulse (with pwm), square (50% duty cycle), and a unique “zigzag” waveform.
-reversing sync (which can be made into soft sync with an external vca or attenuator)
-jumper on pcb to select center or edge triggered pwm
-header on pcb for connecting master voice controller (e.g. control of multiple dixies in a polyphonic configuration)

  • 42 mA +12V
  • 37 mA -12V
  • 0 mA 5V
  • 37 mm deep
  • Ø 4.46 (91 Votes) Average Rating

No info about availability.

$220 submitted Oct 12th 2012, 23:13 by intellijel | last Change Dec 28th 2016, 18:55 by intellijel
Specs are approved by the manufacturer
