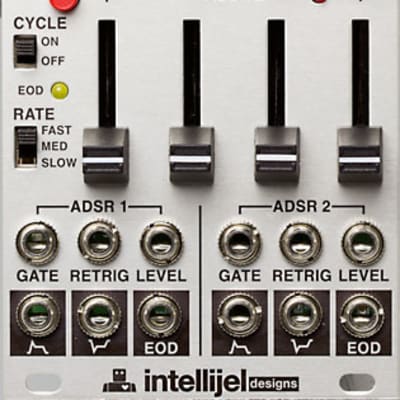

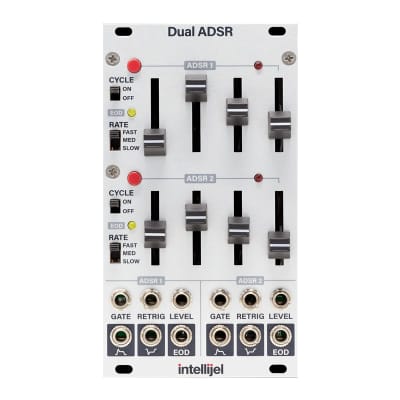

Dual ADSR

The circuit is based in part on the Roland SH-101 / System100m design with several enhancements.

-Manual GATE buttons
-Three timing ranges: (1 second, 10second, 1minute A/D times)
-Normal and inverted outputs
-End of Decay (EOD) logic output
-Cycle mode (which GATE logic control)
-Retrig input (allows re-triggering of the envelope if source gate held high)
- Dynamic control of the envelope output level (each ADSR is routed through a linear VCA and the control is normalled to +5V via the LEVEL jack. You can patch another control source like an LFO or VELOCITY level from a keyboard to this jack.

https://intellijel.com/eurorack-modules/dual-adsr/

  • 60 mA +12V
  • 49 mA -12V
  • 0 mA 5V
  • 38 mm deep
  • Ø 4.58 (85 Votes) Average Rating

This Module is currently available.

$220 submitted Jul 30th 2013, 17:57 by mha | last Change Aug 3rd, 19:04 by intellijel

Date Region Description Price Seller

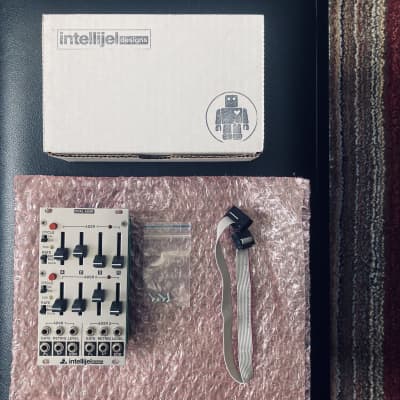

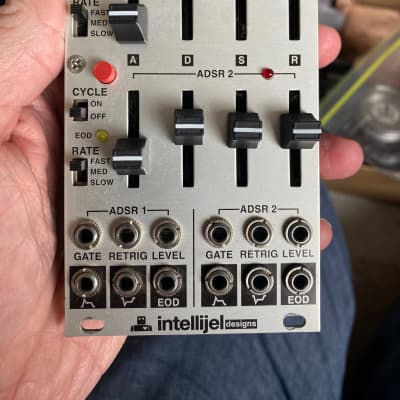

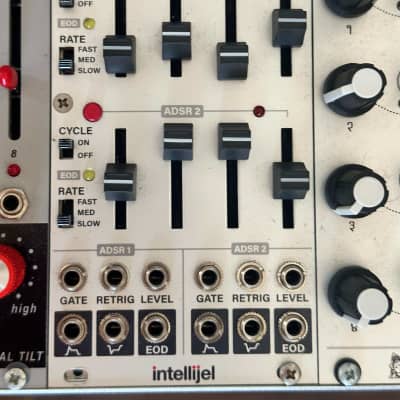

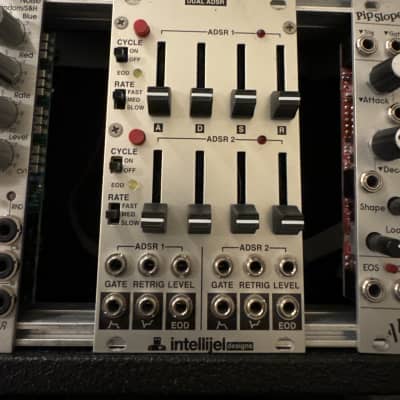

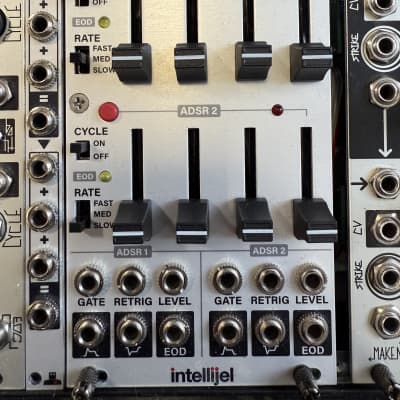

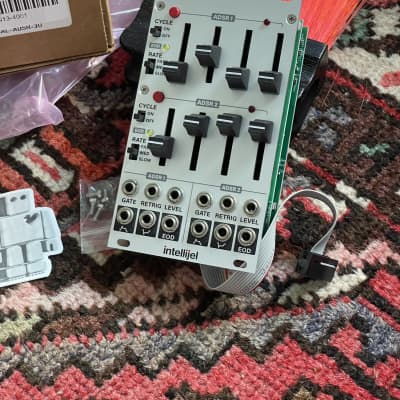

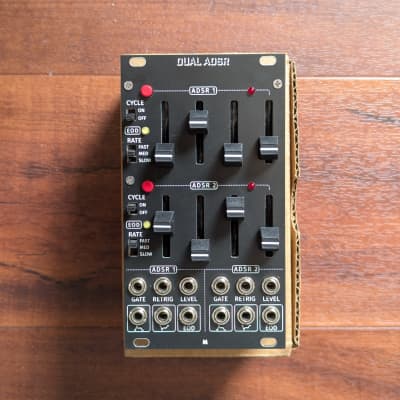

USAWorks perfectly. Ships with power cable [![Intellijel Dual ADSR](https://i...$160.00 View
USA INTELLIJEL DUAL ADSR The circuit inside Intellijel’s Dual ADSR module is par...$199.00 View

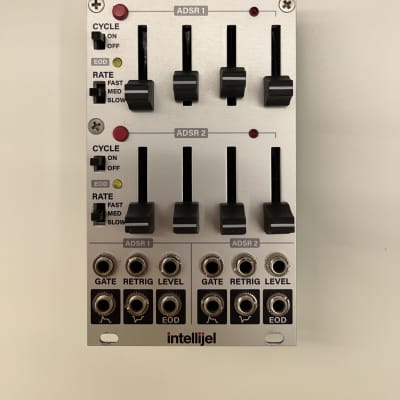

EUThe overall condition of this *Intellijel Dual ADSR* is *like new* . ###te...€175,00Blackblacky View
EUIntellijel Dual ADSR* is *Like new. ###location * I am in Brussels or B...€185,00Movod View
CanadaThe overall condition of this *Intellijel Dual ADSR* is *like new* Great mod...$175.00btrots View
USAIntelligel Dual ADSR in great shape. Free shipping within USA [![Intellijel ...$172.00 View
USAThe Dual ADSR is two ADSR envelopes with different speed settings, cycle mode...$179.00 View

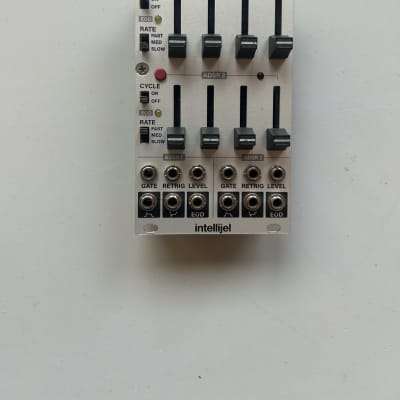

USAGreat module in perfect working condition. Very little signs of rack rash. Li...$175.00 View

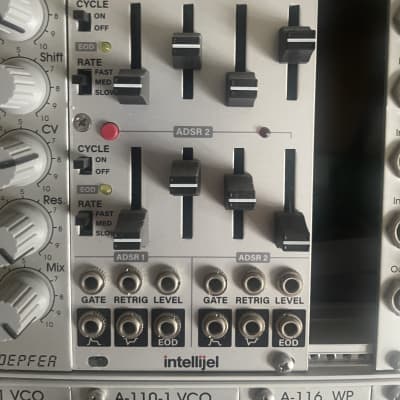

USAIntellijel Dual ADSRUsed <=1Hr No visible blemishes would be Mint conditio...$170.00 View
USArelatively new. Classic ADSR [![Intellijel Dual ADSR](https://images.reverb....$185.00 View
