Dimensions
14 HP
22 mm deep

Module is a 1U tile in Intellijel format

Current Draw
12 mA +12V
10 mA -12V
? mA 5V
Price
$65 Price in €

This Module is currently available.

Specs are approved by the manufacturer

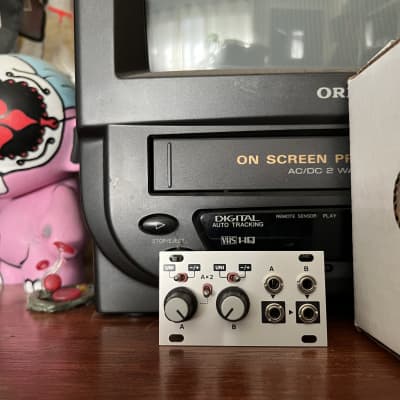

Duatt

Half a Quadratt (and a little bit more)
A super compact Dual Attenuator, Inverter, Attenuverter, Multiplier, Mixer and DC Voltage Source. The little brother of the mighty Quadratt 1U module with added gain multiplier switch and half the size.

The perfect complement to any module.

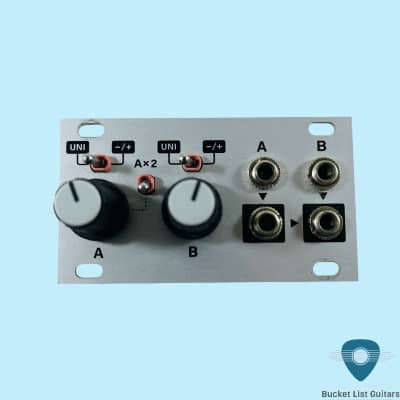

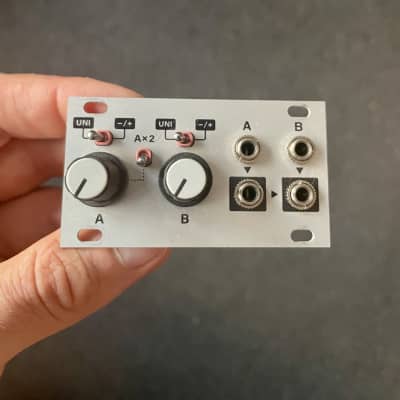

Duatt is a dual-channel active/buffered attenuverter and summing mixer. Each channel has a knob, which can function as a unipolar attenuator or a bipolar attenuverter, depending on the setting of its corresponding two-position polarity switch. It’s a versatile and super handy utility module that will find its way into almost any patch you make!

Each input is normalled to a built-in +5V DC voltage source. With nothing plugged into the jacks, each knob controls a voltage range of 0 to +5 V or -5 to +5 V depending on the position of the channel polarity switch.

Channel A’s output is normalled into the output of channel B for mixing duties, and channel A has has a 2x voltage multiplier switch, allowing you to double the voltage sent into Channel A.

Features
* Dual Attenuator / Inverter / Attenuverter / Multiplier / Adder / Mixer / DC Voltage Source
* Two Modes for each channel (Positive or Bipolar)
* Voltage Doubler on Channel A
* Precision 5v source normalling to all three inputs

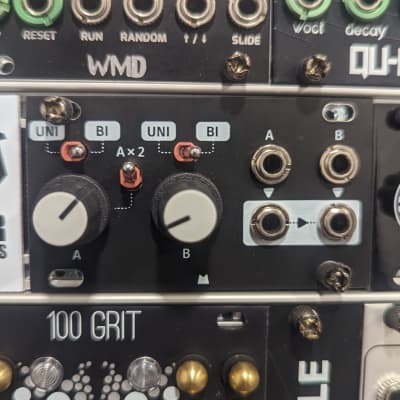

* Skiff / Palette friendly

https://intellijel.com/shop/eurorack/1u/duatt-1u/


Ø 4.81 (21 Votes) Average Rating
submitted Aug 8th 2019, 03:24 by intellijel | last Change Dec 27th 2022, 00:14 by intellijel
