Dimensions
18 HP
38 mm deep
Current Draw
58 mA +12V
44 mA -12V
0 mA 5V
Price
$275 Price in €

This Module is discontinued.

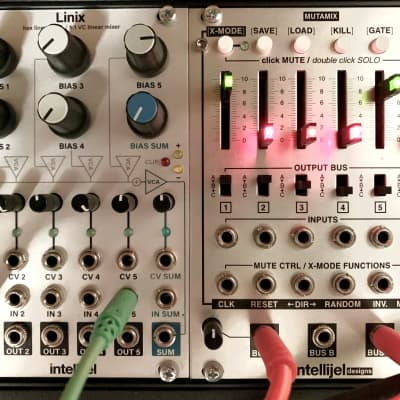

CV / Audio Mixer and Router

6 channel cv/audio mixer with 3 bus outputs and full digital control of muting patterns.

Features:

-6 led linear sliders for input attenuation control (leds can be easily replaced with other colors, they just slide out).
-jumpers to normalize inputs to +5V
-all muting realized via vcas opening/closing
-6 audio/cv inputs
-6 mute/function inputs (depends on mode)
-6 three way bus routing switches.
-3 audio/cv bus outputs
-2 linear master output level controls.
-6 control buttons + status led
-header to normal hexvca output to the 6 inputs (same as mutagen).
skiff friendly depth

Using the external control of muting presets via X-mode turns the Mutamix into a hybrid between a mixer and a sequencer. To learn more about X-mode you should read the manual available on the Intellijel site.

http://www.intellijel.com/eurorack-modules/mutamix/
