Dimensions
8 HP
29 mm deep

Module is a 1U tile.

Current Draw
19 mA +12V
12 mA -12V
? mA 5V
Price
$69 Price in €

This Module is currently available.

Specs are approved by the manufacturer

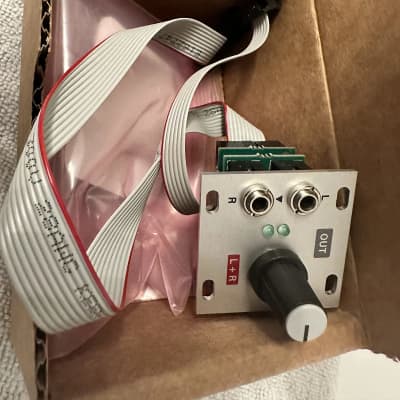

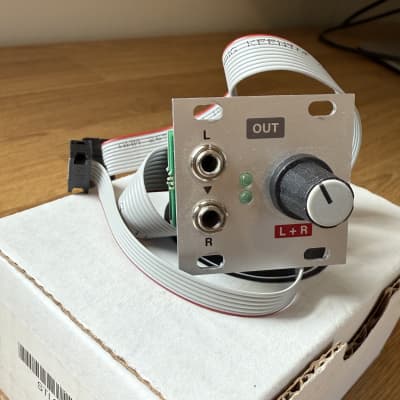

Stereo Balanced Line Audio Output

This module has ⅛” jacks to accept either mono or stereo audio signals from your modular gear.
It features input level indicator LEDs, and contains all the gain control circuitry necessary to drive external audio gear at the proper levels.
A ribbon cable is included for connecting it to either the Stereo Out Jacks 1U module, or a compatible Intellijel case with ¼” jacks (e.g. 7U x 104HP, 7U x 84HP, or Palette 62 )

System Overview
Use the Stereo Line Out 1U system to send audio from your modular synth into power amplifiers, mixers, audio interfaces, DAWs, and other such audio gear. The system works with both balanced +4 dBu professional audio products; and with -10dbV unbalanced gear.

The Stereo Line Out 1U system comprises two components:

  1. Stereo Line Out 1U Module

  2. Either a Stereo Out Jacks 1U module, or a case with built-in ¼” audio jacks, such as Intellijel’s Palette or 7U cases (with a 2nd generation Audio Jacks board):
