Dimensions
26 HP
38 mm deep

Module is a 1U tile in Intellijel format

Current Draw
48 mA +12V
41 mA -12V
? mA 5V
Price
$189 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Stereo DJ style audio crossfader and CV controller

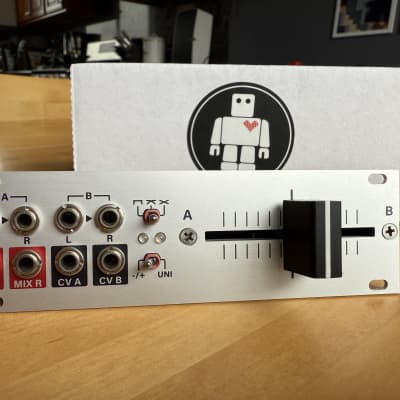

XFADE 1U is a classic DJ-style stereo crossfader, with a few extra tricks up its sleeve. The  'A' and 'B' sides both have L+R inputs. The crossfader blends two stereo input signals together — crossfading one into the other depending on the position of the slider and the selected XFADE Shape. The blended output appears at the MIX L and MIX R output jacks.

In addition, XFADE 1U can be used as a modulation source for controlling other modules, since the crossfader also outputs control voltages from the CV A and CV B jacks. A switch determines whether these voltages are unipolar (crossfading from 0V to 5V, and 5V to 0V), or bipolar (crossfading from -5V to +5V; and +5V to -5V). The two LEDs indicate the polarity and relative levels of the CV A and CV B signals.

XFADE 1U uses a precision Innofader™ crossfader submodule, with moving capacitance technology for smooth (almost frictionless) and precise control. This is the same part found on many high-end DJ mixers.

Features:

  • Smooth and ultra-low friction Innofader™ Mini-Innofader module with moving capacitance technology
  • Three crossfade shapes: DJ cut,  Constant Power and Linear
  • Stereo or Mono operation
  • DC coupled inputs and outputs
  • Unipolar or Bipolar CV outputs
  • Output is chainable to intellijel Outs, Mixup, and Stereo Mixer 1U  Modules via included 3-pin cable
