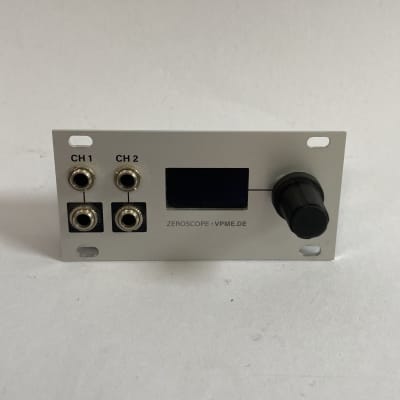

Dual channel oscilloscope, frequency meter and tuner

The Zeroscope 1U is an adaptation of the excellent 3U Zeroscope by VPME.DE

Sometimes your ears are not enough and you really need to see the sounds and control voltages you are generating. Zeroscope's two channel design lets you display and compare both control voltages and audio. It's a good old fashioned sci-fi light show!

Three Modes Packed Into 1U

Scope — Standard graphical display, with time displayed on the X-axis and voltage displayed on the Y-axis.
X-Y — Alternate graphical display with CH 1 driving the X-axis and CH 2 driving the Y-axis.
Tune — Alphanumerical tuning display, which you can configure to show either Hz values or note names.
The Scope displays have adjustable display offset for each channel and an adjustable trigger threshold, while the tuner has options for reference pitch and average update speed.

Ins & Outs

The inputs are DC coupled and accept signals between -10V and +10V. The Signal on the input is normalled to the output below; this allows you to monitor or tune a signal without a mult or re-patching.

https://intellijel.com/shop/eurorack/1u/zeroscope-1u/

  • 8 mA +12V
  • 0 mA -12V
  • 0 mA 5V
  • 26 mm deep
  • Ø 5.00 (5 Votes) Average Rating

This Module is currently available.

Module is a 1U tile.

$139 Price in €
16 HP UtilityTuner
submitted Jan 8th, 18:22 by intellijel | last Change Jan 15th, 22:28 by intellijel
Specs are approved by the manufacturer

17 Users are observing this
