A-541

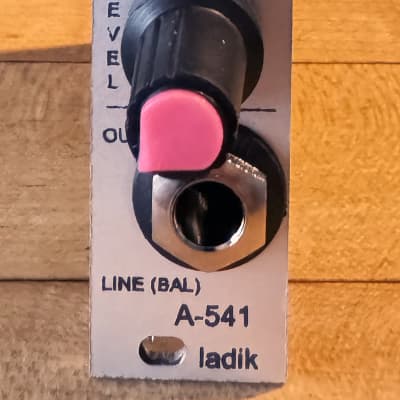

2ch Balanced Line Out

2ch balanced line outputs converting Eurorack levels to (adjustable) line levels.

From the top down:

Channel A
input 1/8″ jack (modular level)
output level knob
output 1/4″ jack (balanced, adjustable/line level)
4-LED level meter (-20/-6/0/+3dB or +6dB – jumper selectable)

Channel B
4-LED level meter (-20/-6/0/+3dB or +6dB – jumper selectable)
input 1/8″ jack (modular level)
output level knob
output 1/4″ jack (balanced, adjustable/line level)

On board settings (see picture):
– ground lift jumpers for balanced outputs (jumper header set = grounded, removed = gnd lift)
– jumper for last LED indicating +3dB or +6dB level (jumper header set = +3dB, removed = +6dB – nearly overload),
– jumper for dot/bar meter mode (jumper header set = dot mode, removed = bar mode)
– meter calibration trimmers

Frequency range: 15Hz to 60kHz (-1dB), 10Hz to 80kHz (-3dB)
THD+N: better than 0,01%
Input impedance 100kOhm, AC coupled

http://ladik.ladik.eu/?page_id=2786

  • 70 mA +12V
  • 70 mA -12V
  • ? mA 5V
  • 62 mm deep

This Module is currently available.

$62 Price in €
4 HP External
