Dimensions
4 HP
46 mm deep
Current Draw
30 mA +12V
2 mA -12V
0 mA 5V
Price
$75 Price in €

No info about availability.

Easy Quantizer

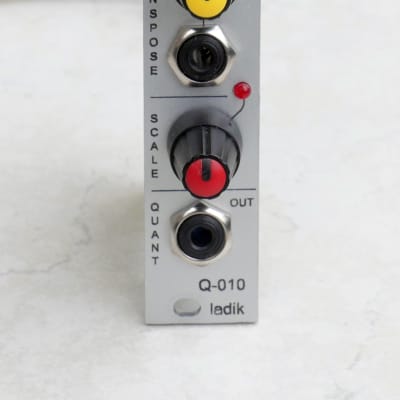

Q-010 Easy quantizer for Eurorack / Doepfer A100.

From top:
CV input jack (0-5V)
octave transpose knob (manual or CV amount) & jack (ccw = 2 octaves down, mid=no transpose, cw = 2 octaves up)
halftone transpose knob (manual or CV amount) & jack (ccw = no transpose, cw = 11 halftones up)
scale select knob & LED
CV output jack (0-5V)

Width: 4TE/ 4HP/ 20mm.
Depth: 46mm /1,8″ max.
Current: 30mA
Handy 20cm (8″) power cable included.

Double check power connection before powering your system please.
„Red strip“ means -12V connector side in Eurorack standards.
In some power distribution systems connector key can be reverted.
In this case cut connector key and plug power connector right way (with respect to red strip) or use different power cable appropriate to your power system.

http://ladik.ladik.eu/?page_id=769
