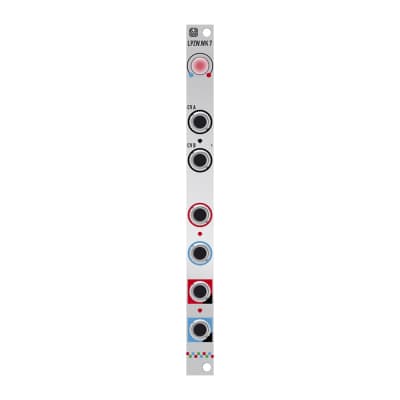

WK7

Dual linear VCA

Dual linear VCA with clever normals for many applications.
5V opens the VCA to a gain of 1. Higher values will just be clipped. 0V closes the VCA.
Transperent attenuator knob for CV A with illumination to show the current state for both channels.

• In A normals into In B
• Out A normals summed into Out B
• 5V normal into CV A
• CV A normals with inverted curve into CV B

Applications you can build by patching:
- normal VCA (twice)
- linear crossfader
- panner
- sidechain ducker
