Dimensions
4 HP
36 mm deep
Current Draw
10 mA +12V
0 mA -12V
0 mA 5V
Price
$120 Price in €

This Module is discontinued.

Specs are approved by the manufacturer

Pressure Points Sequence Expander

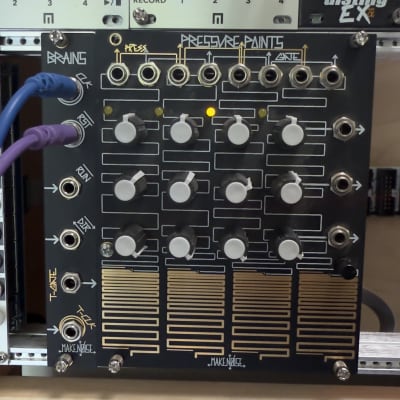

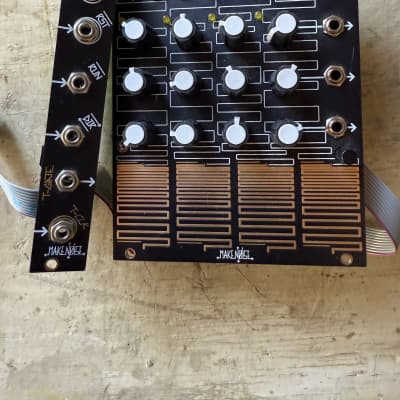

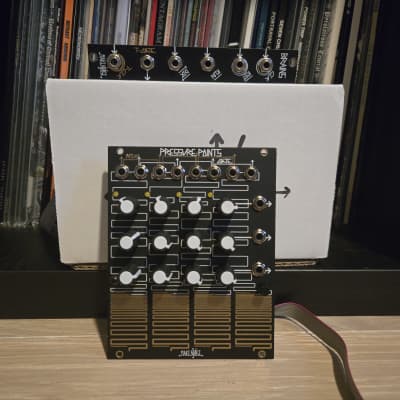

BRAINS is a clocked sequential binary event machine. It is designed to be connected to one or two Pressure Points to form a 4 or 8-Step 3-channel analog sequencer. Classic synthesis control!

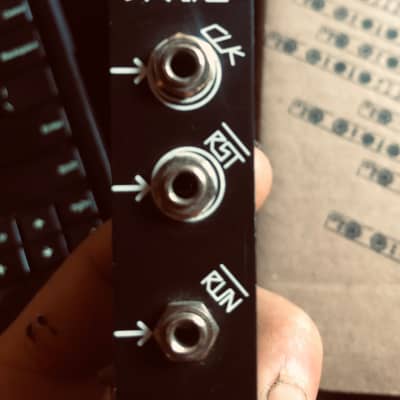

Voltage Control over Direction, RUN/ Stop and ReSeT

Pressure Points provides data input to BRAINS in the form of touch selectable ReSeT and Hold stages and patchable ReSeT Pulses per stage

Pressure Points provides the tuned voltages per stage

The Touch-GATE OUT produces a Gate HIGH signal whenever a Pressure Points is touched

Maximum number of Pressure Points that may be connected to a BRAINS is two

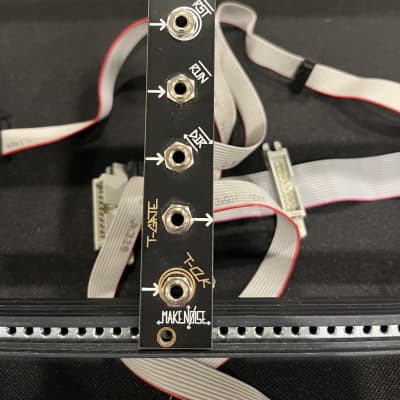

Ships with all cables needed for expansion of one or two Pressure Points

Pairs only with Pressure Points

http://www.makenoisemusic.com/brains.shtml
