22 HP
25 mm deep
Current Draw
150 mA +12V
150 mA -12V
0 mA 5V
$450 Price in €

This Module is discontinued.

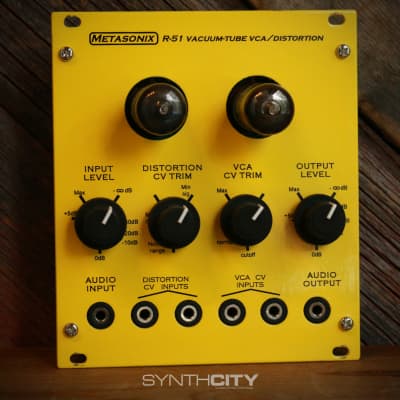

R-51 VCA/Distortion

The R-51 is unique and never before available in any form.
It uses two 7-pin miniature pentodes, type 12AW6, and can accept 12AF6, 12AU6, 12BA6, 12BD6, and several other pentode types (or pentagrid converters) with 12-volt heaters. No modification required.

Two CV inputs are available for controlling circuit distortion from less than 2% up to more than 40% (varies with individual tubes).
Two CV inputs also allow use of the R-51 as a conventional synthesizer VCA, with gain variable from less than -75dB to +5dB (typical).

Both distortion and VCA features can be used simultaneously. This allows true vacuum-tube asymmetrical soft clipping to be applied to any waveform. With suitable CV processing, the R-51 can be configured as a true "variable mu" limiter or expander.

Draws 400 mA when first powered on, then the declared current draw (150ma +/-12V).

R-Series Info

The Metasonix R-series of vacuum-tube modules is intended for use in any "eurorack" standard modular synthesizer system. all r-series modules are 22hp (112mm) wide and fit in any doepfer©, analogue systems©, or other compatible cabinet. They are powered entirely from the cabinet's internal +-12v dc power supplies, using doepfer compatible 16-pin power connectors. their circuits protrude behind the panel less than 25mm (1 inch).

All vacuum tubes are nos (new old stock) types from classic american and european manufacturers that are run very conservatively for long life, and are readily available from distributors. The tubes protrude from the panel for visibility and cooling, less than 38mm (1.5 inches), and should fit inside a doepfer a-100 suitcase cabinet lid or into a doepfer mini case. All audio inputs and outputs and cv inputs/outputs are 100% compatible with other synthesizer modules. plate voltage is provided by a tiny switching supply producing clean 48v regulated at low current, which is very safe and will not injure the user. Potentiometers are top-quality alpha rk12l types, and 3.5mm phone jacks are special kobiconn vertical-mount types, much better quality than the cheap ones usually seen in euro modules.

Each r-module is fully protected against reverse supply voltage, overvoltage, undervoltage, or incorrect hookup to external equipment.

As with all our products, the R-series is totally handcrafted in northern california, usa.
