Dimensions
16 HP
20 mm deep
Current Draw
50 mA +12V
40 mA -12V
0 mA 5V
Price
$200 Price in €

This Module is currently available.

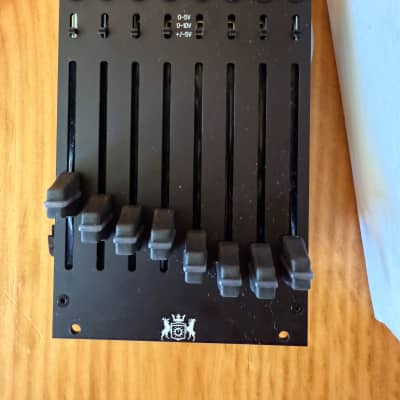

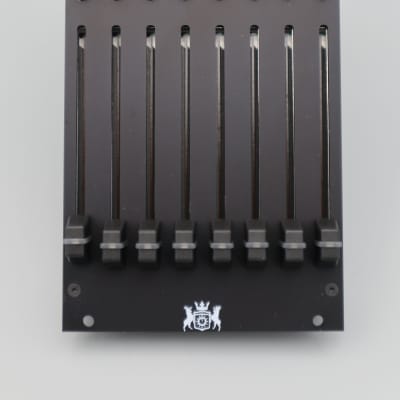

Fader Bank with CV, I2C, and MIDI

F8R is a 8 channel, 16hp control surface for Eurorack

Features:

Long throw LED 60mm faders
0-5V, 0-10V, -5 to +5V CV ranges per channel
Fully analog CV outputs
I2C communications as master or follower
I2C mode and addressing easily set by hardware switches. No coding needed
MIDI header for one output channel on the back of the device
I2C, MIDI, and CV can be used simultaneously
Arduino codebase for further customization of midi output/I2C data
Available expander with additional midi and i2c outs
Dual Colored LEDs. Red/Green . Red/Blue, Blue/Pink

https://michigansynthworks.com/products/8m-fader-bank-with-cv-i2c-and-midi
