Dimensions
12 HP
28 mm deep
Current Draw
50 mA +12V
50 mA -12V
0 mA 5V
Price
$359 Price in €

This Module is currently available.

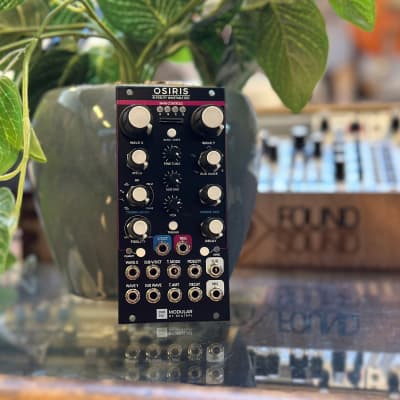

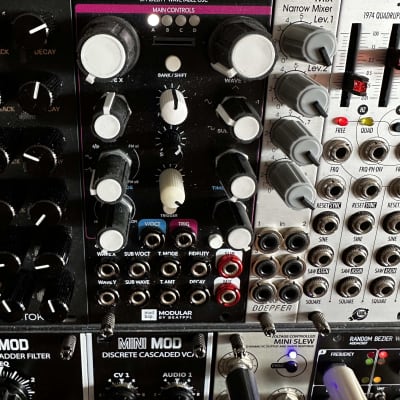

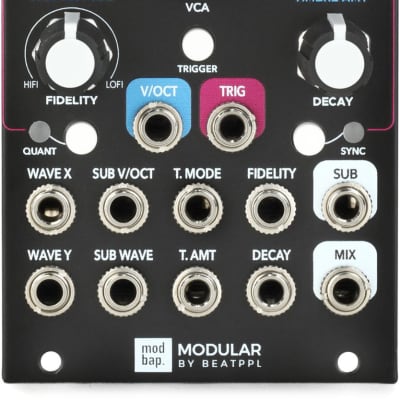

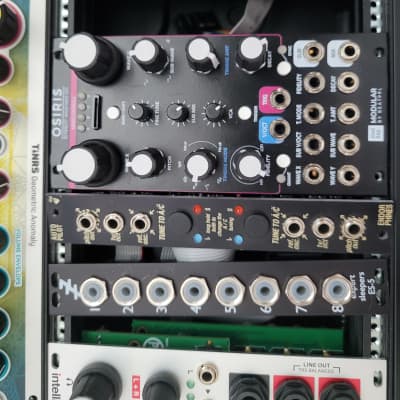

Bi-Fidelity Wavetable Oscillator

Osiris is a powerful and neatly packed 12hp bi-fidelity wavetable oscillator with 7+ timbre modes including FM and phase modulation, an independent sub-oscillator, Lo-fi processing, extensive CV modulation capabilities, a pitch quantizer, 4 banks of 32 wavetables each, the ability to load user wavetables via micro SD card (not included) and it’s own free open-source wavetable editor (OsirisEdit).

  • Built on the Daisy platform for easy updates, speed, and stability
  • CV control over all major parameters
  • Sync button (resets the wave on the trigger)
  • Decay parameter
  • Pitch quantizer
  • VCA with trig input

https://modbap.com/product/osiris/


submitted Sep 10th 2021, 10:12 by mikeleebirds | last Change Dec 2nd 2021, 20:55 by motorhead412

22 Users are observing this
