Specs are approved by the manufacturerAnalog crossfader, mixer, distortion and white noise module
Utility Eurorack module with 3 crossfaders, 3 channel mixer and analog white noise output. Crossfaders can be used for VCO wave mixing, precision CV/audio attenuation, stereo panning or as dry/wet mixers in effect signal chain.
3 channel mixer in the module is designed to perform analog signal summing and subtraction with soft clipping. Subtraction allows converting low pass filters to high pass. Copy of mixer output signal can be fed to one of its inputs creating feedback based overdrive, together with soft clipping it can produce heavy analog distortion. Other modules can be placed in the feedback loop creating different sound effects.

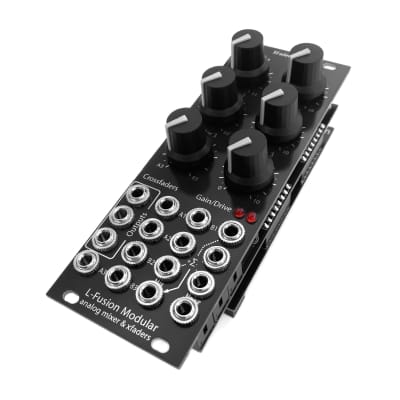

On the front module offers two leds, one indicating that signal sum had reached 5 volts, second one turns on when signal is overdriven. All potentiometers are precision Alpha variety, module is made with high quality electronic components, features rubber knobs with soft touch for easy grip and tactile feedback.
Power consumption: +12V - 60mA, -12V - 50mA
Module width: 9HP
Module depth: 3.8 cm
Noise level: -90dB
Input impedance: 100kΩ
Output impedance: 1kΩ 0.1%
Includes 10 to 16 pin power cable.
