Dimensions
2 HP
30 mm deep
Current Draw
12 mA +12V
12 mA -12V
0 mA 5V
Price
$92 Price in €

This Module is currently available.

Specs are approved by the manufacturer

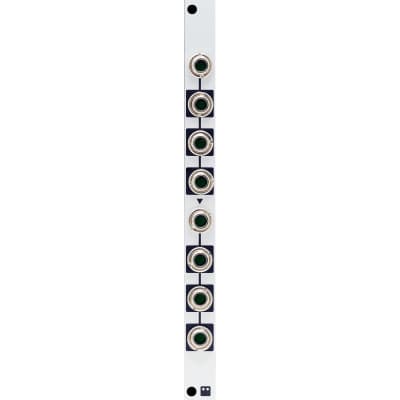

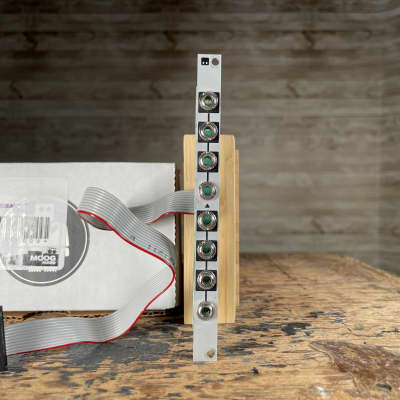

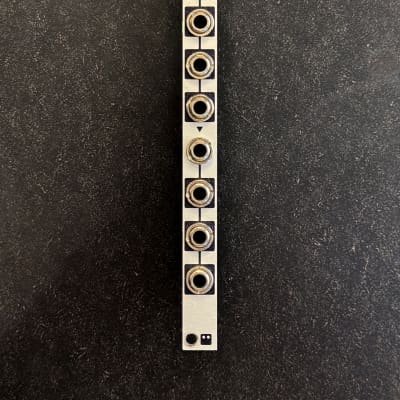

Buffered multiple modules with up to 8 outputs

A buffered mult is an essential item in every rack. This 2HP buffered DC-coupled module will fulfill all your audio and CV multiplying needs.

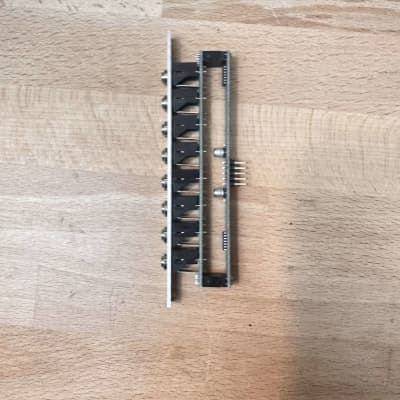

With a little switch on the back the module can be configured in two different modes.
The 1-to-8 mode speaks for itself, offering eight identical copies of your input signal.
The Double mode offers a 1-to-4 and 1-to-3 buffered multiple with the first input getting normalised to all output jacks if the second input stays unused.

Other information:

Dimensions: 2HP width, 3U Eurorack standard
10-pin power socket

Morphor

https://morphor.io/products/modules/mult-buffered/


submitted Mar 23rd 2023, 10:45 by Morphor | last Change Dec 5th 2023, 09:30 by Morphor
