Dimensions
6 HP
21 mm deep
Current Draw
34 mA +12V
31 mA -12V
0 mA 5V
Price
$180 Price in €

This Module is currently available.

Analog logic / CV arithmetics

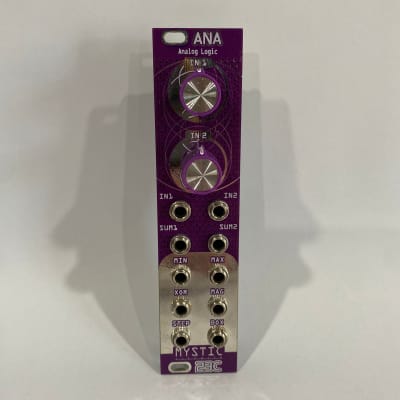

ANA is a utility module comprising six functions that combine two inputs. These functions are:

MIN – compute the minimum of the two input voltages

MAX – compute the maximum of the two input voltages

VCA – compute the XOR, or multiplication the two input voltages

MAG – compute the difference between the two input voltages.

STEP – perform a track and hold based smooth/ stepped process from the two inputs

BOX – perform a bipolar comparator process resulting in a 3 level square wave.
