Dual Eurorack Mixer

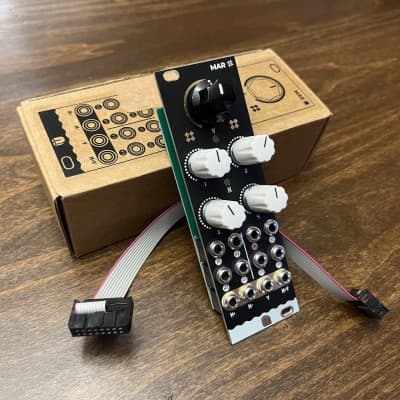

MAR is a multichannel dual mixer module for the modular synthesizer. Both mixers are capable of mixing audio, CV and gate signals because they are DC coupled. MAR has two independent 4-channels mixers:

Mixer X: Is a four channel mixer with gain control for each channel. The potentiometers use logarithmic tape to have a good control with audio signals. This mixer features two outputs, the mixer output and its inverted. The output level is shown in the LED.

Mixer Y: Is a four channel mixer with gain control for the sum of the Y channels. If no jack is connected to the input Y1, the output of the Mixer X is normalled to Mixer Y. The potentiometer use logarithmic tape to have a good control with audio signals. This mixer features one output, the sum of the 4 channels. The output level is shown in the LED.

This Mixer can work as two 4-1 Mixer, or 7-1 Mixer with global gain control.

INPUTS:
4 Mixer X inputs.
4 Mixer Y inputs.

OUTPUTS:
Mixer X output.
Inverted Mixer X output.
Mixer Y output.
Mixer X + Mixer Y output.

FAST SPECS:
Dual mixer module for the modular synthesizer - Eurorack.
8 HP - 15mm Depth - Skiff friendly.
Both mixers are capable of mixing audio, CV and gate signals.
Mixer X: 4-channel mixer with gain control for each channel.
Mixer Y: 4-channel mixer with gain control for the sum of the channels.
If no cable connected to Mixer Y input 1, the output of the Mixer X is normalled to Mixer Y.
Can work as two 4-channel mixers, or one 7-channel mixer.
The output level is shown in the LEDs.

FB: https://www.facebook.com/NANOmodules/
IG: https://www.instagram.com/NANOmodules/

NANO Modules, 2018.
València - Spain.

https://nanomodul.es/mar/

  • 16 mA +12V
  • 16 mA -12V
  • 0 mA 5V
  • 15 mm deep
  • Ø 5.00 (3 Votes) Average Rating

This Module is currently available.

$175 Price in € submitted Jul 27th 2018, 08:54 by NANO-Modules | last Change Feb 20th, 15:09 by NANO-Modules
Specs are approved by the manufacturer
