6 HP
21 mm deep
Current Draw
65 mA +12V
60 mA -12V
0 mA 5V
$237 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Four channels of linear DC-coupled goodness in 6hp for all your VCA needs: ducking, mixing, CV-controlled leveling, and more!

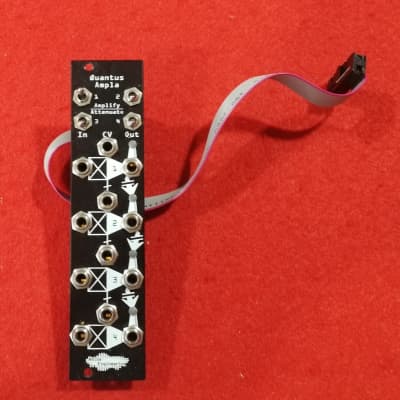

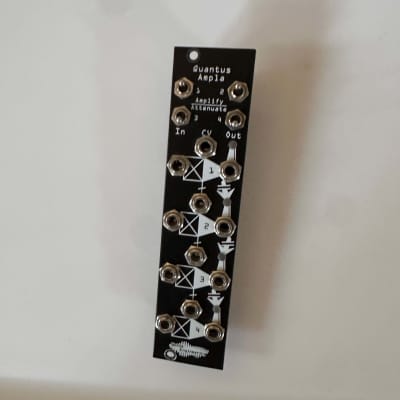

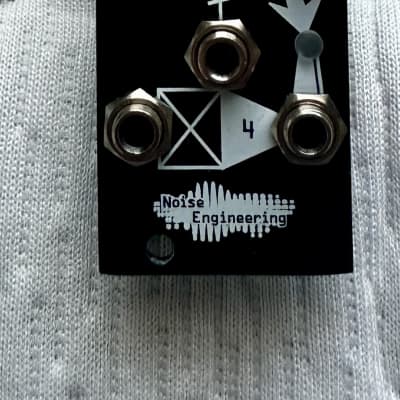

Quantus Ampla is a compact four-channel VCA. But it’s not just any VCA: with some unique normaling, mixing, and CV options, you can use it for a plethora of tasks. Each channel has two modes: Amplify, which gives you normal VCA response, and Attenuate, which makes the VCAs close instead of open in response to positive CV. The CV inputs are circularly normalled, so you can easily create ducking effects over multiple voices, volume fades, and transitions, all with minimal patching. Plus, the outputs mix down, so it can be two two-channel mixers, a 3 channel mixer, a 4 channel mixer… Oh, and did we mention that it’s DC coupled so it can process CV signals, too? The possibilities are endless.


Ø 4.67 (6 Votes) Average Rating
submitted Aug 12th 2021, 06:45 by noise-e | last Change Apr 10th, 23:12 by noise-e
