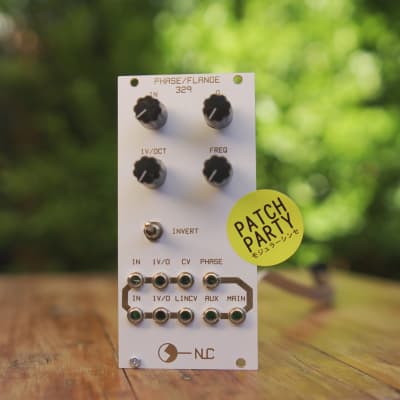

10 stage Phaser/Flanger based on the Aries 329

10 stage Phaser/Flanger based on the Aries 329. It has 11 matched NPN pairs (BCM847) and a set of matched FETs. It is actually quite simple to match FETs, a circuit will be given in the build guide. Pretty much all surface mount, not suitable for beginners!

PCB = US$20
Panel = US$25
assembled = US$220

http://nonlinearcircuits.blogspot.com.au/2016/01/329-phase-flange.html

  • ? mA +12V
  • ? mA -12V
  • ? mA 5V
  • Ø 5.00 (3 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

$220 submitted Jan 26th 2016, 20:21 by kingspill | last Change Oct 5th 2016, 21:36 by acgenerator

6 Users are observing this
