Specs are approved by the manufacturerPolyrhythmic Performance Sequencer
Polyrhythmic Performance Sequencer

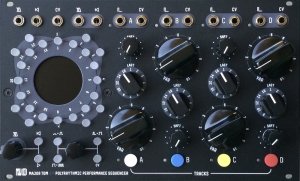

Major Tom is a eurorack sequencer designed for percussive synthesis in modular eurorack context.
Technically is a 4 track cv/gate sequecer (expandable up to 12 tracks with expander modules) and with some unique feautures focused on rhythmic and polyrhythmic aspect.
MAJOR TOM presents itself as a classic 16-step CV/gate sequencer but also implements triplet steps in parallel (the outer orbits of the 16-step circle), making it the only hardware step sequencer to offer this possibility and, above all, in such an immediate way.
It is a 4-track Eurorack CV/gate sequencer (expandable up to 12 tracks with 2-channel expansions) with a focus on writing rhythmic and polyrhythmic parts and on treating the width, length, and fragmentation of the gate for each step.
All these features are extremely useful for creating more dynamic rhythms, easily creating burst effects, rolls, ratcheting, and for precise work on percussive synthesis in the Eurorack modular context (for example, working with ping/ring techniques with low-pass gates and filters of West Coast systems or stimulating delays and resonators).
A quantized CV for each track allows you to tune or modulate your patches. ( V/Oct - 1.2V/Oct - HZ/v )
Of course, the sequencer also allows you to work with drum modules and create classic melodic sequences like any other CV/gate sequencer.
TECHNICAL INFORMATION
• 4 CV/Gate tracks (expandable up to 12 with expansions)
• 16-step sequencer with the addition of triplet steps (total of 24 steps)
• 4 independent parameters per step, adjustable via dedicated button and encoder (3 for gate and 1 for CV)
• LEVEL (gate amplitude, from 0V to 10V)
• LENGTH (gate length, from a very short trigger of 1% of the gate to a full gate step)
• SPACER/FRAGMENTER (gate fragmentation up to 10 parts and application of dynamic masks to the impulse group, such as increasing, decreasing, linear, random, alternating, etc.)
• CV (Quantized voltage in different scales, from 0V ti 10V)
* Indipendent clock divider for each track
A large part of the module is dedicated to sequence controls in order to have direct and immediate contact and maximum playability.
3 performance controls and a colored button for each track:
• LARGE VAR SWITCH KNOB with 10 positions switch where you can save 10 different sequences instantly switchable for use as variations.
• LAST STEP SWITCH KNOB, allowing independent change of the LAST STEP of the individual track from 16 STEPS to 1, easily creating polyrhythms.
• SHIFT KNOB to finely delay the entire sequence independently from others.
• COLORED BUTTON, colored button to select the track to program. Other functions are associated with this button such as pattern copy/paste and track reset.
Additional features include:
• Encoder for sequence speed and clock divider menu
• Start/Stop button and Reset button (general reset and individual track resets in combination with the colored track button)
• CLOCK OUT and RESET OUT
• CLOCK IN, RESET IN, and CV IN
• MAJOR TOM is 42HP, expander IS 14HP , DEPTH is 3,5cm
• MEMORY: hundreads and hundreads of “LIVE SCENE” can be saved and reorganized on SD (LIVE SCENE is the set of 10 patterns saved in the large knob of each of the tracks)
EXPANSIONS
Each expansion adds two channels with all their respective controls and allows for expanding the sequencer tracks according to the need, up to 12 total channels tops, connecting by 4 expansions.
Expandability is not the only advantage of this structure because, in addition to expanding the available channels, it allows us to keep the project open and develop other types of expansions with different characteristics and different controls to meet other needs.
" BLISTER, THE CV IN EXPANSION, IS INCLUDED IN THE PRICE "
Major Tom is available now on Kickstarter
