Dimensions
4 HP
38 mm deep
Current Draw
25 mA +12V
25 mA -12V
0 mA 5V
Price
$99 Price in €

This Module is currently available.

Specs are approved by the manufacturer

Minimal panning mixer

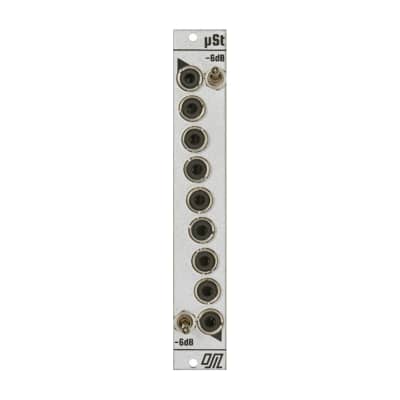

μSt is a minimal panning mixer based on Nearness, an open-source design by Jesper Särnesjö.

  • Features 7 inputs and 2 outputs (top and bottom jacks). The closest an input is to an output, the greater its influence on it, either audio getting louder or CV getting more or less attenuated.

  • The PAD switches attenuate their respective outputs by -6dB in case you want to use μSt as the output module of your rack or to avoid clipping if you're mixing hot input signals within your system.

  • All inputs and outputs are DC-coupled: it handles both audio and CV.

As all of our modules, it features reverse-polarity power protection.

CC BY-SA 4.0. Through-hole remix by Kevin Olivella.

Olivella Modular | Eurorack modules designed and made in Argentina.

https://www.olivellamodular.com/

https://linktr.ee/olivella


Ø 5.00 (1 Votes) Average Rating
submitted Jun 5th 2020, 22:06 by PoloAudiovisual | last Change Dec 12th 2021, 00:30 by PoloAudiovisual

6 Users are observing this
