Dimensions
14 HP
303 mm deep
Current Draw
88 mA +12V
20 mA -12V
? mA 5V
Price
$346 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

Specs are approved by the manufacturer

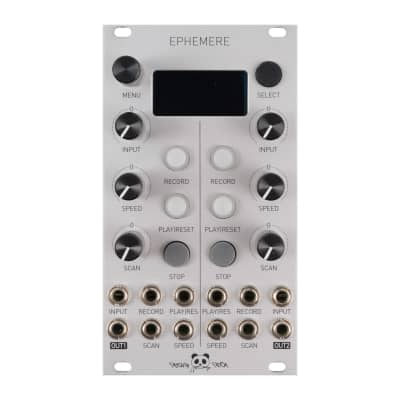

CV Looper interface

This is a high-resolution dual-channel recording interface for your signals. You can record from 1014sec at 172Hz up to 4 seconds
at 44.1kHz of signal on each channel, change the playback speed also it scan through the recorded CV.
It has an Oled display to monitor your live and recorded signal to adjust playback length.
When nothing is patched to the input you can use the input pot as an offset/cv generator to record pot movements into the module.
It´s possible to save, load your signals in the sdCard up to 16GB of space
There are 4 different modes to record to choose from to make more complex signals and 3 different play modes either
2 Channels signal interface recording

Record modes ( manual, sync, manual multi, sync multi)

Play modes ( forward, backward, pendulum)

M1014 seconds at 172Hz up to 4 seconds at 44.1kHz to select from the menu.

Oled display with 2 types of signal monitoring

Speed control /5 to x5

Signal recording select from the menu -5V/+5V or 0V/10V

Save, Load, erase files from 16GB SDcard

Easy remote updates

CV control from 0V to 10V

14hp

Skiff friendly

http://patchingpanda.com/ephemere


submitted May 7th, 18:14 by patchingpanda | last Change May 7th, 18:18 by patchingpanda

5 Users are observing this
