Dimensions
8 HP
25 mm deep
Current Draw
15 mA +12V
15 mA -12V
0 mA 5V
Price
$90 Price in €

This Module is currently available.

Specs are approved by the manufacturer

"MUTE" module

NEW PRODUCT!

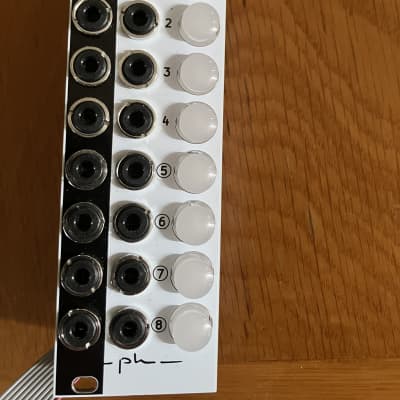

The SIGNAL SWITCH module is a variation of the "SIGNAL SWITCH 2" module (https://www.modulargrid.net/e/ph-modular-signal-switch-2), it is a "MUTE" module consisting of eight identical stages.
Using quality 'vactrols' helps avoid annoying clicks when turning your signals on/off passing through the module, and adds a slight interesting OUT fade. The MUTE of the signals is thus clean and discreet.

Explanations:
A signal entering "IN" and coming out "OUT" can be muted by the activation of an illuminated push button.

ON = Button pressed, White LED lit, the incoming signal is directed to the output and therefore remains audible.
MUTE = Button off, incoming signal is muted. Using "vactrol" avoids an unpleasant click and brings a slight fade OUT.

Internal routing (normalization) is a passive multiple of input 1:
The signal entering input 1 is also routed to the other 7 outputs 2-8 (which retain their own "MUTE" function). Inserting a jack into one of the inputs (2 to 8) breaks the downstream routing. This allows different combinations for its use, depending on your needs.
A jumper on the back allows the module to be split into two independent floors:
Thus, the signal entering Input 1 is also routed to Outputs 2-4 (which retain their own "MUTE" function). Inserting a jack into one of the inputs (2 to 4) breaks the downstream routing.
AND
The signal entering Input 5 is also routed to Outputs 6-8 (which retain their own "MUTE" function). Inserting a jack into one of the inputs (6 to 8) breaks the downstream routing.

Manual: soon

The price includes: module, screw M3 and connection cable. Excluding shipping costs !!

Manufactured by Christian from ph modular.
Available as an assembled Module, no kit.

To order, please contact me (phneutre56@gmail.com) the terms of payment, delivery times and shipping costs, will be detailed by return mail.
The payment will be in euros (€) and can be done by paypal. Delivery possible in the world, please contact me (phneutre56@gmail.com)
