Triple Mode MIDI to CV Converter

The Midi2 converts standard midi note messages into the analog control voltages used by modular synthesizers. This allows a modular synthesizer to be controlled by a midi keyboard, sequencer, or DAW.

The two sets of Gate (GT) outputs can be used to trigger envelope generators by providing a voltage of +5v. The Control Voltage (CV) outputs produce precisely 1volt per octave over a range of 10 octaves. Control Voltage outputs (CV1 and CV2) respond to pitch bend control messages without any additional patching.

The Sync output outputs a Gate signal based on the Midi clock signal.


The Midi2 module has 3 distinct modes of operation:

Monophonic - Gate2 and CV2 outputs mirror the outputs of Gate1 and CV1. Monophonic mode works great when using a modular as a single voice synthesizer.

Duophonic - The Midi2 module uses the two sets of Gate and CV outputs to allow two notes to be played simultaneously. The first midi note is sent to the Gate1 and CV1 outputs and the second is sent to the Gate2 and CV2 outputs. Duophonic mode is perfect when working with a two voice modular synthesizer.

Dual Monophonic - Gate 2 and CV2 outputs are controlled by a different midi channel than the Gate 1 and CV 1 Outputs. Dual Monophonc mode allows a modular to be controlled by two separate sets of midi data. This mode works well when using a modular as two single voice synthesizers.

http://pittsburghmodular.com/midi2/

  • 40 mA +12V
  • 40 mA -12V
  • ? mA 5V
  • 35 mm deep
  • Ø 3.64 (28 Votes) Average Rating

This Module is discontinued.

$159
6 HP MIDI
submitted Oct 9th 2012, 16:49 by solitud | last Change Sep 30th 2016, 09:45 by modulargrid

Date Region Description Price Seller
EUThe overall condition of this *Pittsburgh Modular MIDI2* is | *good* | ###...€70,00Futurit View

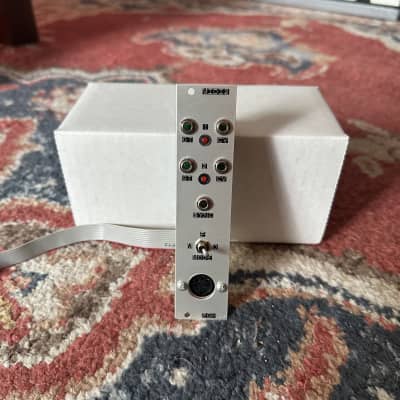

EUThe overall condition of this MIDI 2 is like new Good cosmetic condition I ...€80,00digitalnoize View
