Dual channel oscilloscope

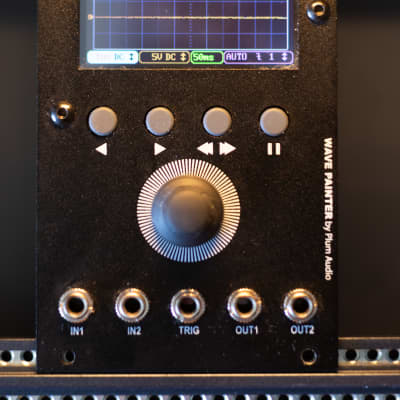

Wave Painter is Eurorack conversion kit for JayTech WAVE2 - dual channel oscilloscope.

Wave Painter Highlights:
2 Buffered Inputs
When no jack is plugged Inputs normelized to internal signal generator or CV/Gate buses from Power header.
1 Trigger
2 Buffered Outputs normelized to Inputs

Highlights of WAVE2:
No. of Channels: 2
Bandwidth: 0 – 200KHz per channel
Sensitivity range: 5mV/DIV – 20V/DIV
Maximum input voltage: 50Vpk
Maximum real time sampling rate: 1MS/s
Time Base range 10us/DIV – 500s/DIV
X-Y Display Feature
Function Generator Capability: Built-in 0 – 20KHz (sine) dual channel DDS function generator
Display Resolution: 320 x 240 Color display
Display Size: 2.4″
Touch Display Capability

https://www.plum-audio.com/product-page/wave-painter

  • 165 mA +12V
  • 40 mA -12V
  • 0 mA 5V
  • 30 mm deep
  • Ø 1.00 (1 Votes) Average Rating

Available as an assembled Module and as a DIY project.

This Module is currently available.

$199 Price in €
14 HP Utility
