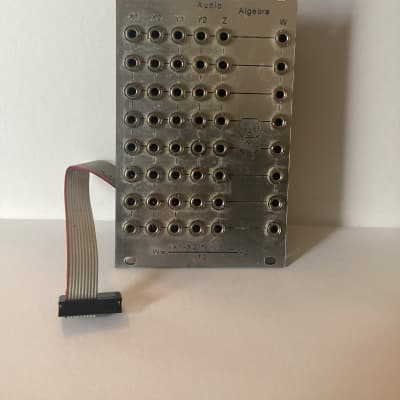

8 Channel VCA

Algebra 8 Channel Voltage Controlled Amplifier
By Reckless Experimentation Audio LLC
You can't have enough VCAs. But having eight more will definitely be helpful.
Each VCA has 5 inputs. Input X2 is subtracted for X1, and Y2 is subtracted for Y1.The results of these subtractions are multiplied together and divided by 10. The Z input is added to this value and output at the jack labeled W. All inputs are by polar, and any unused input are tied to zero volts.

This might seem complex, bit it allows for a great depth of CV and audio manipulation.
A short video on how it works:

Width 16 hp
Depth 25mm
Power +12V 40ma
-12V 40ma
+5V 0ma

http://recklessexperimentationaudio.com/products/algebra-vca

  • 40 mA +12V
  • 40 mA -12V
  • 0 mA 5V
  • 25 mm deep

This Module is currently available.

$299 Price in €
16 HP VCA
