14 HP
35 mm deep

Module is a 1U tile in Intellijel format

Current Draw
25 mA +12V
3 mA -12V
0 mA 5V
$123 Price in €

This Module is currently available.

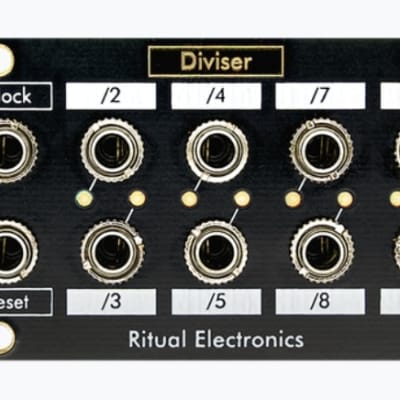

Odd & Even Clock Divider

Diviser is a 1U clock divider with odd & even outputs.
It can divide a signal by 2, 3, 4, 5, 7, 8, 16 and 32 simultaneously.
Being based on CMOS chips it can run at audio speed to create subharmonics from an oscillator.
The reset input resets all the outputs to a high state.
Comparators are built in both the Clock and Rest inputs with threshold set at 2.5V. It means you can use any type of signals in these inputs.
