Dimensions
16 HP
58 mm deep
Current Draw
70 mA +12V
55 mA -12V
0 mA 5V
Price
$349 Price in €

This Module is currently available.

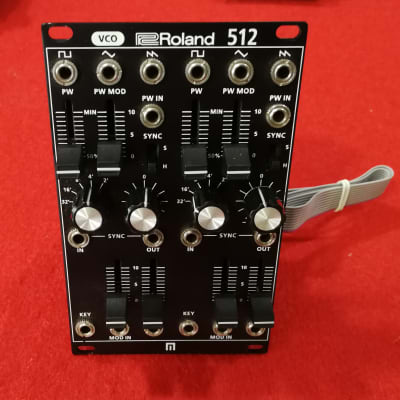

SYSTEM-500 512

Dual VCO

The 512 Dual VCO (voltage controlled oscillator) is a single module consisting of two voltage controlled oscillators. Each independent VCO produces frequencies across a wide range with 1V/octave tracking and dedicated pulse, triangle, and saw wave outputs. Variable pulse width is available via panel control or CV modulation. Each oscillator’s frequency can also be synchronized to the other in weak or strong modes to achieve a unique “sync” sound.

Controllers:
PULSE WIDTH slider
PULSE WIDTH MODULATION slider
MODULATION IN 2 slider
MODULATION IN 3 slider
SYNC switch
RANGE knob
PITCH knob

Connectors:
SQUARE WAVE jack: Miniature phone type
TRIANGLE WAVE jack: Miniature phone type
SAW WAVE jack: Miniature phone type
PULSE WIDTH IN jack: Miniature phone type
SYNC IN, OUT jacks: Miniature phone type
KEY IN jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type
MODULATION IN 3 jack: Miniature phone type

http://www.rolandus.com/products/system-500_512/
