Dimensions
16 HP
58 mm deep
Current Draw
40 mA +12V
40 mA -12V
0 mA 5V
Price
$349 Price in €

This Module is currently available.

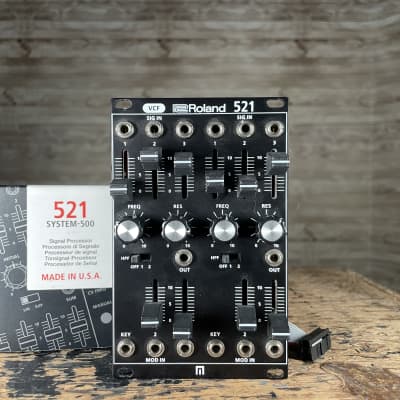

SYSTEM-500 521

Dual VCF

The 521 Dual VCF (voltage controlled filter) module features two separate low pass filters for modifying the timbre of audio sources. Each filter has its own dedicated controls for frequency cutoff, resonance, and a fixed high pass filter with two switchable cutoff points. Audio and CV input mixers on each channel allow the blending of multiple audio signals and modulation sources.

Controllers:
SIGNAL IN 1 slider
SIGNAL IN 2 slider
SIGNAL IN 3 slider
MODULATION IN 2 slider
MODULATION IN 3 slider
HPF switch
FREQUENCY knob
RESONANCE knob

Connectors:
SIGNAL IN 1 jack: Miniature phone type
SIGNAL IN 2 jack: Miniature phone type
SIGNAL IN 3 jack: Miniature phone type
OUT jack: Miniature phone type
KEY IN jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type
MODULATION IN 3 jack: Miniature phone type

http://www.rolandus.com/products/system-500_521/


Ø 4.70 (20 Votes) Average Rating
submitted Apr 15th 2015, 16:44 by solitud | last Change Apr 19th 2022, 09:54 by Phabyous
