Dimensions
16 HP
58 mm deep
Current Draw
110 mA +12V
90 mA -12V
0 mA 5V
Price
$369 Price in €

This Module is currently available.

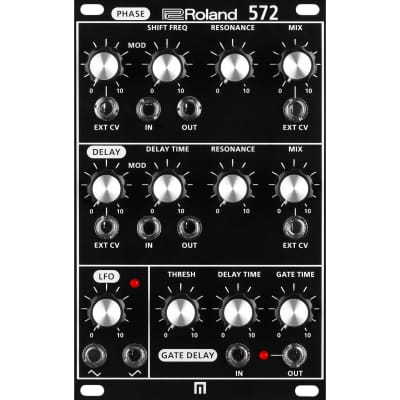

Phase Shifter + Delay + LFO

The 572 Phase Shifter, Delay and LFO is a time-based, multi-effects module. The 572 includes a five-stage phase shifter, analog audio delay, a control voltage gate delay, and an LFO. The phase shifter has panel controls for shift frequency and resonance amount that can vary from subtle to a deep, lush analog effect. Similarly, the audio delay has independent knob control of delay time and resonance (or feedback) for short chorus-like modulation delays. Both the phase shifter and delay can be modulated by the 572’s internal LFO or external CV signals and feature wet/dry effects mix controllable via the front panel or with CV.

The LFO section has a knob for controlling frequency and features both normal and inverted output jacks. The gate delay has knobs to control threshold, delay time, and gate time for modifying incoming gate signals from other modules.

Controllers:
[PHASE SHIFTER section]
MODULATION knob
SHIFT FREQUENCY knob
RESONANCE knob
MIX knob

[DELAY section]
MODULATION knob
TIME knob
RESONANCE knob
MIX knob

[LFO section]
FREQUENCY knob

[GATE DELAY section]
THRESHOLD knob
DELAY TIME knob
GATE TIME knob

Indicator:
LFO Indicator
GATE DELAY OUT Indicator

Connectors:
[PHASE SHIFTER section]
MODULATION EXTERNAL CV jack: Miniature phone type
IN jack: Miniature phone type
OUT jack: Miniature phone type
MIX EXTERNAL CV jack: Miniature phone type

[DELAY section]
MODULATION EXTERNAL CV jack: Miniature phone type
IN jack: Miniature phone type
OUT jack: Miniature phone type
MIX EXTERNAL CV jack: Miniature phone type

[LFO section]
OUT jack: Miniature phone type
INVERTED OUT jack: Miniature phone type

[GATE DELAY section]
IN jack: Miniature phone type
OUT jack: Miniature phone type
