Dimensions
10 HP
45 mm deep
Current Draw
22 mA +12V
11 mA -12V
0 mA 5V
Price
$259 Price in €

Available as an assembled Module and as a DIY project.

This Module is currently available.

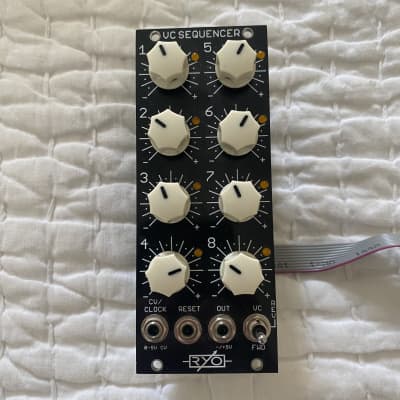

8-step bipolar CV sequencer with voltage controlled stage addressing

  • compact 8-step sequential voltage source.
  • classic forward/backward clocked operation.
  • use control voltage levels scaled to each step of the sequencer to allow the waveform you feed it with to determine the running pattern.
  • All analogue circuitry - no software or micro processors!
  • All low latency CMOS and Opamp circuitry!
  • Buffered inputs and outputs.
  • slim 10HP footprint.
  • compact 42mm Depth (with power cable attached).
  • low power draw: 22mA +12V / 11mA -12V / 0mA +5V.
  • reaches through entire audio range so also being a 3 bit hands on waveshaper!
  • Schmitt triggers on all inputs.
  • expanders will offer chaining of 2 VC Sequencers for 16 step operation and unlimited extra parallel channels of CV or gate/trig.

http://ljunggrenaudio.com/products/sequencing.html#vcseq
