Dimensions
14 HP
25 mm deep
Current Draw
55 mA +12V
70 mA -12V
0 mA 5V
Price
$260 Price in €

This Module is currently available.

Specs are approved by the manufacturer

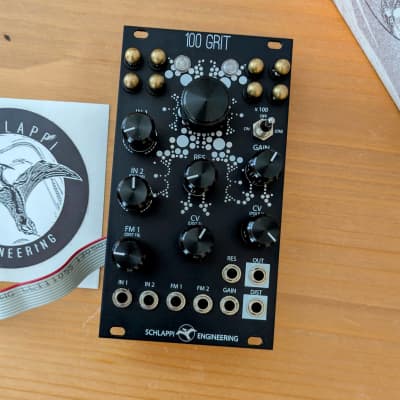

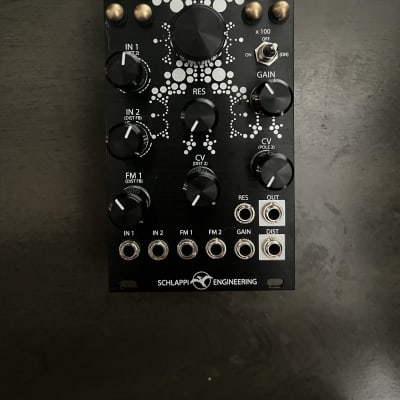

Low Pass Filter, VCA, and Distortion with Brass Touchpoints

8 brass touchpoints
2 inputs to transistor core low pass filter
Voltage control over frequency, resonance, and gain
OTA VCA with soft saturation characteristics
Distortion circuit based around a vintage headphone amplifier driven into instability
Three position x100 gain switch with off, on, and momentary on settings
Each input and cv input is normalled to a different feedback path (6 total)
Seperate outputs for the VCA and distortion
Can operate as a vintage voiced VCA and LPF or a screaming distortion and noise effect
All analog design
14 HP
Skiff friendly 25mm depth
