Dimensions
14 HP
25 mm deep
Current Draw
300 mA +12V
0 mA -12V
0 mA 5V
Price
$620 Price in €

This Module is currently available.

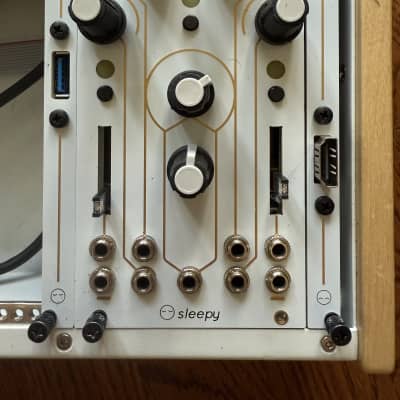

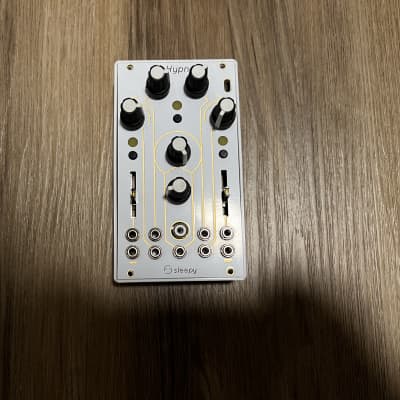

Semi-Modular Digital Video System

Hypno is a voltage controlled digital video synthesizer by Sleepy Circuits. It digitally emulates and extends common analog video workflows that previously required whole systems to achieve, with shape generation, colorization, feedback and the ability to patch these elements in a simple compact interface.

Specs:

Standalone and Eurorack Compatible (14HP, 25mm Depth)

2 Oscillators with selectable shapes, frequency, rotation and polarization

4 feedback Modes with Positive and Negative Gain

Palette HSV Colorizer

CV Control-able (Common Eurorack 5V to -5V signal range)

MIDI Compliant (Via front USB port)

Internal Patching Matrix

Per-OSC Internal Modulations for Scrolling, Rotation, Polarization, Fractal Axis

Per-OSC Fractal-ing control

Feedback Control with XY offset, rotation and hue shift

Composite or HDMI SD Video Output with native upscaling up to 1080p

NDI Output Via Front USB (Stream video directly to your computer for recording, streaming or further processing)

Power via Front/Side USB or Eurorack Ribbon

4 Core Internal Processor with Regular Firmware Updates via front panel USB

www.sleepycircuits.com/shop/hypno
