Six Channel Summing Mixer / Attenuator

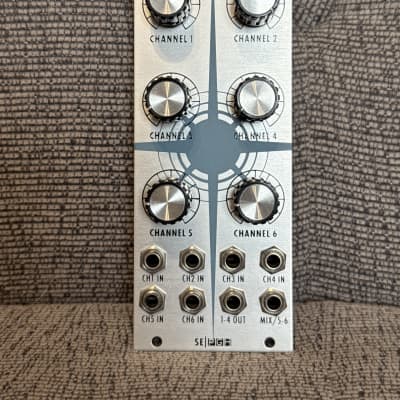

LEVELS is a versatile, low-noise six channel summing mixer/attenuator for audio and CV, which can be used rather effectively in a variety of ways: 6 in 1 out, or two separate mixers: 4 in 1 out, and 2 in 1 out, e. g., when only jacked-in to MIX 5/6 output all input channels pass through; utilizing the 1-4 OUT removes channels 1-4 from the MIX 5/6 output. Handy indeed.

The pots are wired with a logarithmic volume curve that is tuned for use with audio but it will work splendidly with CV as well. Pressing LEVELS into service as a wave-shaper by patching all of the individual OSCILLATION waveform outs (sub, sine, tri, saw, ramp, square) into CHANNEL inputs 1-6, makes beautiful music, and an exclusive, vast, morphable hybrid waveform of your innermost sound designs; it feels that kind of good when the these two Modstar pieces are tied-in together.

Potentiometer Potential
Six attenuation pots control the CHANNEL 1, CHANNEL 2, CHANNEL 3, CHANNEL 4, CHANNEL 5, and CHANNEL 6.

Patch it Up
Eight patch points: CH1 IN, CH 2 IN, CH 3 IN, CH 4 IN, CH 5 IN,
CH 6 IN, 1-4 OUT, MIX/5-6.

All Controls and Patch Points
CHANNEL 1 – Adjusts the level or value of 1.
CHANNEL 2 – Adjusts the level or value of 2.
CHANNEL 3 – Adjusts the level or value of 3.
CHANNEL 4 – Adjusts the level or value of 4.
CHANNEL 5 – Adjusts the level or value of 5.
CHANNEL 6 – Adjusts the level or value of 6.
CH 1 IN – Channel 1 input.
CH 2 IN– Channel 2 input.
CH 3 IN– Channel 3 input.
CH 4 IN– Channel 4 input.
CH 5 IN – Channel 5 input.
CH 6 IN – Channel 6 input.
1-4 OUT – Channels 1-4 output.
MIX/5-6 – All channels output (MIX), or 5-6 when cable is plugged into any of the 1-4 channel inputs.

http://www.studioelectronics.com/products/synths/boomstar-modular/levels/#modstar

  • 22 mA +12V
  • 22 mA -12V
  • ? mA 5V
  • 40 mm deep
  • Ø 4.50 (2 Votes) Average Rating

No info about availability.

$149 submitted Apr 26th 2015, 01:21 by studioelectronics | last Change Oct 21st 2015, 01:15 by studioelectronics
Specs are approved by the manufacturer

2 Users are observing this
