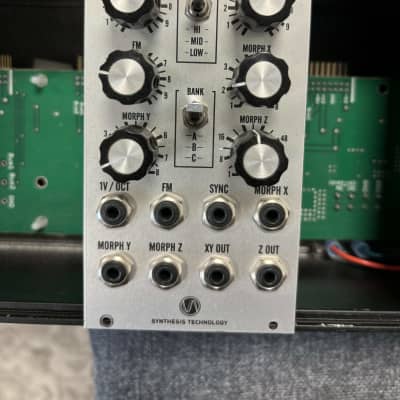

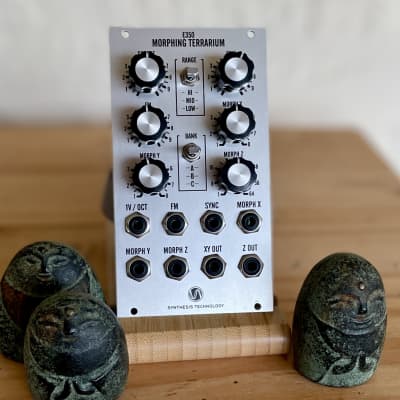

Dual Wavetable oscillator

The Synthesis Technology E350 is a 2-output wavetable VCO. There are 3 banks of 64 wavetables.
Each bank is arranged like a chessboard: there are 8 rows (the ‘X’ direction) and 8 columns (the ‘Y’
direction). Waves in a row tend to be alike, or will progress from ‘dark’ to ‘bright’ in timbre. The E350
has independent controls to index/select where in this array the DSP ‘scans’ the data to generate these
2 outputs. The DSP has sophisticated algorithms that smooth the 2 outputs into over 24,000 unique
waves.
Since the E350 does not have built-in CV attenuators, you normally first attenuate a CV before plugging
it into the E350. If you want to use a full-scale, -5V to +5V signal, the panel knob must be set straight
up (’12:00 position’) or the internal voltage clamps will limit the swing. Remember, any applied CV to a
jack is added to the position on the panel knob for that function. Overdriving a CV input may cause
pitch changes.

Manual: http://synthtech.com/docs/E350_manual.pdf
http://soundcloud.com/clockfunnel/morphing-terrarium-morph-xy-and-zdsp

  • 55 mA +12V
  • 25 mA -12V
  • 0 mA 5V
  • 47 mm Depth
  • Ø 4.56 (103 Votes) Average Rating

This module is currently available.

$389 submitted Oct 6th 2012, 13:36 by solitud | last Change Oct 3rd 2016, 13:16 by dysonant
