Dimensions
4 HP
29 mm deep
Current Draw
Module does not draw current
Price
$140 Price in €

Available as an assembled Module and as a DIY project.

No info about availability.

Specs are approved by the manufacturer

Deluxe Power Module

DELUXE PWR

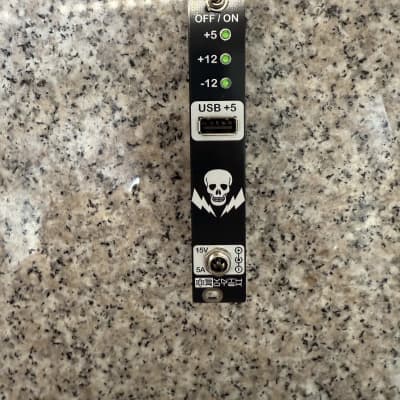

Synthrotek’s “super-slim” Deluxe Power is designed to give you maximum power in a small, elegant package.

SMALL & SAFE: 4HP Panel at only 29mm deep! This module is very skiff friendly and will fit in ANY eurorack case. We use VERY safe and efficient converters and regulators to cut down on heat and to protect you from short circuits or reverse polarity mistakes.

FLEXIBLE: Finally a system that grows with you! Start off with one DELUXE PWR module and one or two flying bus cables (keyed of course to avoid reverse polarity mistakes!) then graduate to our Noise Filtering Power Distribution boards as your module count grows. Connecting to our boards is a ‘snap’ now with our new Molex ‘quick-release’ power system that allows you to daisy chain Synthrotek distribution boards with ease.

POWERFUL: The front panel takes a standard 2.1mm center positive plug and is compatible with our locking DC jacks. For maximum flexibility, this power supply kicks out all 3 rails (-12, +12, +5) with adequate power for a medium-sized case: Ideal for up to 2 rows of 104 HP and beyond (make sure to consult the owner’s manuals of your modules in order to make sure you are not trying to pull more amps than are available with this power supply).

A 15-28V power brick is required to operate this product (can be purchased as an option above). A 90W power brick is recommended to take full advantage of all the power this unit can deliver.

Features:

  • Input Voltage Range: 15 to 28 volts DC
  • Output Voltage: +12V @ 2A, -12V @ 1.5A, +5V @ 1.5A
  • USB jack
  • Molex quick-release connector for easy install
  • 2 16-Pin Eurorack power connectors, keyed for safety
  • Requires 15-28V power brick DC Input Jack size: 2.1mm (sold separately)

http://www.synthrotek.com/products/modular-circuits/deluxe-power/


Ø 4.42 (12 Votes) Average Rating
submitted Jun 20th 2015, 11:28 by synthrotek | last Change Jul 3rd 2015, 23:41 by synthrotek

10 Users are observing this
