Analog Drum Module

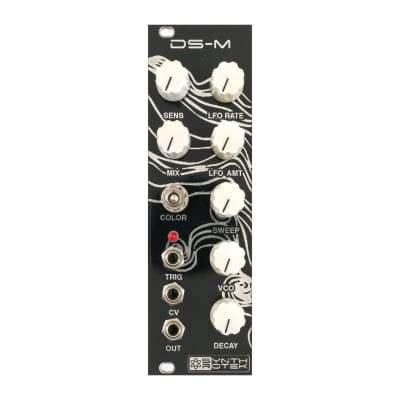

The DS-M is a full featured drum synth that can emulate virtually any drum sound! The DS-M (Drum Synth Module) is a complex, modifiable, 100% analog drum synth loosely based on the Coron DS-8 and neatly packaged into an 8hp module.

Changes to the original DS-8 include:
– VCA-like trigger input (more voltage = louder output)
– Trimmer-adjustable attack
– LED trigger indicator
– 1v/o tracking (C0-C4)
– Triangle core oscillator
– Additional noise color switch setting (3 settings instead of 2)
– More distinct noise timbres
– Louder, improved noise circuit
– Really LOW bass frequencies
– Total range ~4Hz to 2.6kHz

In addition to being a highly versatile analog drum synth, this unit is also a fully functional monophonic synth that has these features:
– 1v/o tracking (C0-C4)
– Adjustable attack and decay envelope over the VCA
– Built-in LFO circuit
– Sweep circuit
– Noise circuit

Plug your control voltage and gate directly out of your midi-to-CV converter or connect your QuNexus keyboard, Arturia keyboard, or sequencer, and you’re ready to make some music!

Note: Complete units come pre-calibrated (according to the Synthrotek Deluxe Power Supply System). If you are building a kit or have a different power supply system, you will need to calibrate the 1v/o tracking using the DS-M calibration guide.

http://www.synthrotek.com/products/modular-circuits/ds-m-drum-synth-module/

  • 20 mA +12V
  • 10 mA -12V
  • ? mA 5V
  • 44 mm deep
  • Ø 3.58 (19 Votes) Average Rating

Available as an assembled Module and as a DIY project.

No info about availability.

$175 Price in € submitted Nov 19th 2014, 23:42 by seank | last Change Sep 2nd 2018, 14:56 by splonge
