Dimensions
14 HP
25 mm deep
Current Draw
15 mA +12V
10 mA -12V
0 mA 5V
Price
$250 Price in €

This Module is currently available.

Specs are approved by the manufacturer

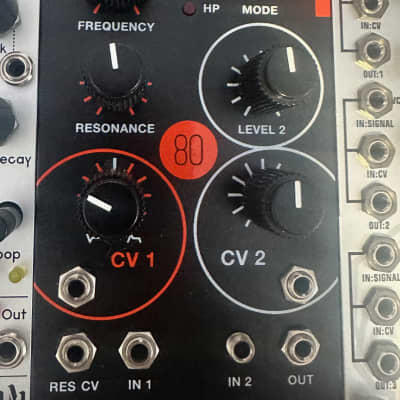

Jupiter-6 inspired multimode filter

4 modes: 24 dB low pass, 12 dB low pass, band pass and high pass
2 audio inputs, one log attenuated and one non-attenuated
2 frequency CV inputs, one unipolar input and one attenuverted input
1 resonance CV input, non-attenuated

http://system80.net/product/jove/
