Dimensions
28 HP
33 mm deep
Current Draw
160 mA +12V
55 mA -12V
0 mA 5V
Price
$210 Price in €

This Module is currently available.

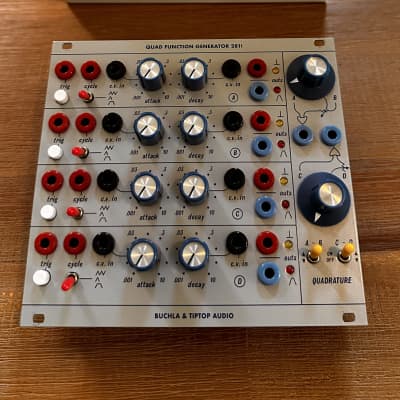

Quad Function Generator 281t

The 281t Quad Function Generator comprises four function generators organized in two pairs. All four generators can operate independently or can be linked in pairs to generate more complex output voltages.

Upon receiving a pulse, a generator’s output voltage ramps up to 10V at a rate determined by the sum of an applied control voltage and the setting of the attack time knob. When in Sustained mode, the voltage will stay high as long as the input pulse is maintained; when not in the Sustained mode, or when the input pulse terminates, the output ramps down to 0V at a rate determined by the sum of the decay cv in and the setting of the decay knob.
At the end of the Decay segment, a transient pulse appears at the pulse output. If the 281t is in Cyclic mode, the cycle now repeats.

  • Cycle jack enables the cycling of the corresponding function generator using a gate signal.
  • Trigger button enables the manual triggering of the function generators.
  • The time range for both Attack and Decay is from .001 to 10 seconds.
  • A switch selects one of three modes: Transient, Sustained, and Cyclic.
  • In the Quadrature mode, generators A and B (or C and D) operate in tandem with their functions shifted by ninety degrees in relation to each other.

https://tiptopaudio.com/buchla/
