808 Analog Rimshot and Claves

The RS808 is the TR-808’s analog Rimshot and Claves sound generator in Eurorack format. It’s a low-cost module that brings back the classic sound, but with even more variation and control, continuing to expand your Tiptop Audio modular drum machine.

The RS808 come with two switches that give a total of 4 different position: two are the classic Rimshot and Claves sounds as found on the original, and two are unique to the RS808 module adding a range of snappy “click” sounds the circuit is capable of producing. Two control knobs were added, each have different effect for the selected sound. In general, these controls can be categorized ad Pitch and Snap as they control the frequency of the oscillator and decay of the envelope generator. The RS808 is an exact reproduction of the original circuit which sounds like a fresh machine analog coming off the assembly line back in the 80’s.

Compatible with all the other drums in this series, the RS808 includes a hot modular level output gain stage capable of producing signals that can be easily distorted if desired. On the inputs, we have designed a dual input pulse-shaper circuit so you can trigger the RS808 with trigger/gate signals from step sequencers, clock dividers or any other pulse/clock sources. This eliminates the need to shape pulses sent to the module ensuring the same stable sound at peak power, regardless of your pulse source. These distinctive features make integrating this legendary sound generator into your modular synth easy, unleashing the power of real analog drums.


  • 14 mA +12V
  • 13 mA -12V
  • 0 mA 5V
  • 14 mm deep
  • Ø 3.55 (11 Votes) Average Rating

This Module is currently available.

4 HP Drum
submitted Mar 6th 2014, 07:59 by Tiptop | last Change Jun 2nd, 19:42 by Tiptop
Specs are approved by the manufacturer

Date Region Description Price Seller

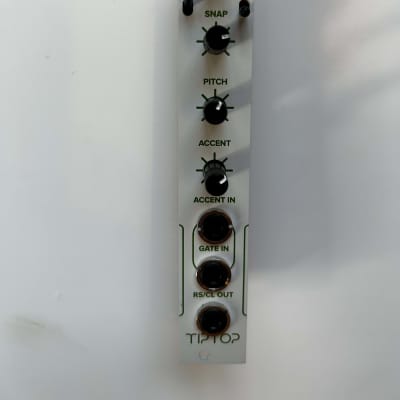

EUTip top audio RS808 for sale. Slight marks from where screwed in.. fully work...$66.13 View

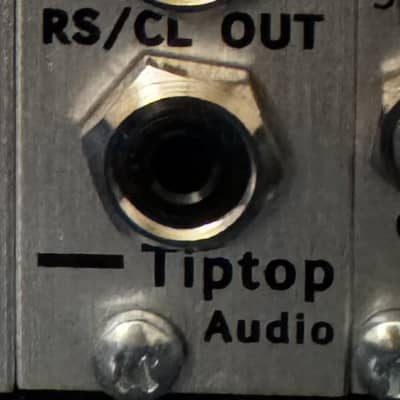

South AmericaThe overall condition of this *Tiptop Audio RS808* is *like new* ###techni...$90.00LIOZPRAV View
AustraliaThe RS808 is Roland's TR-808 Rimshot/Clavs sound generator adapted for modula...$102.44 View
